Used ZSTZ 630 C1Z Gear Grinder | A.K. Machine Traders, Navi Mumbai, India

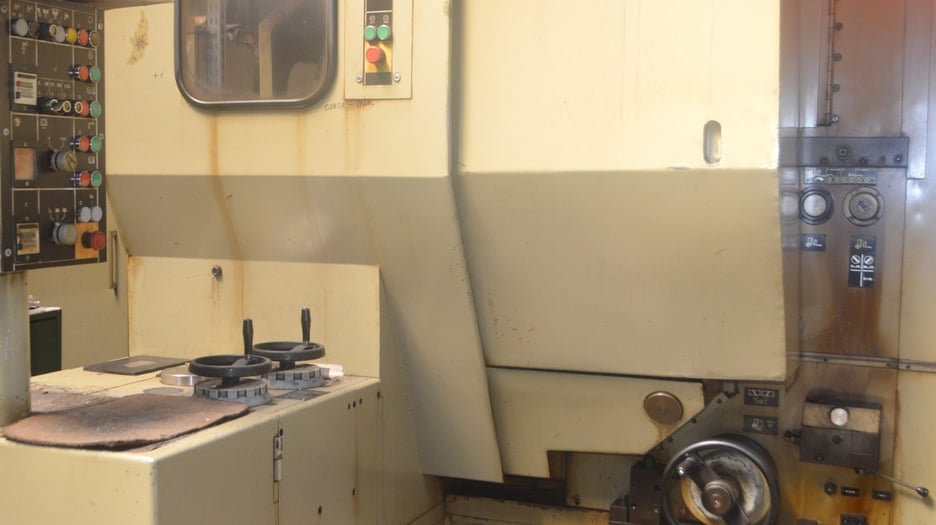

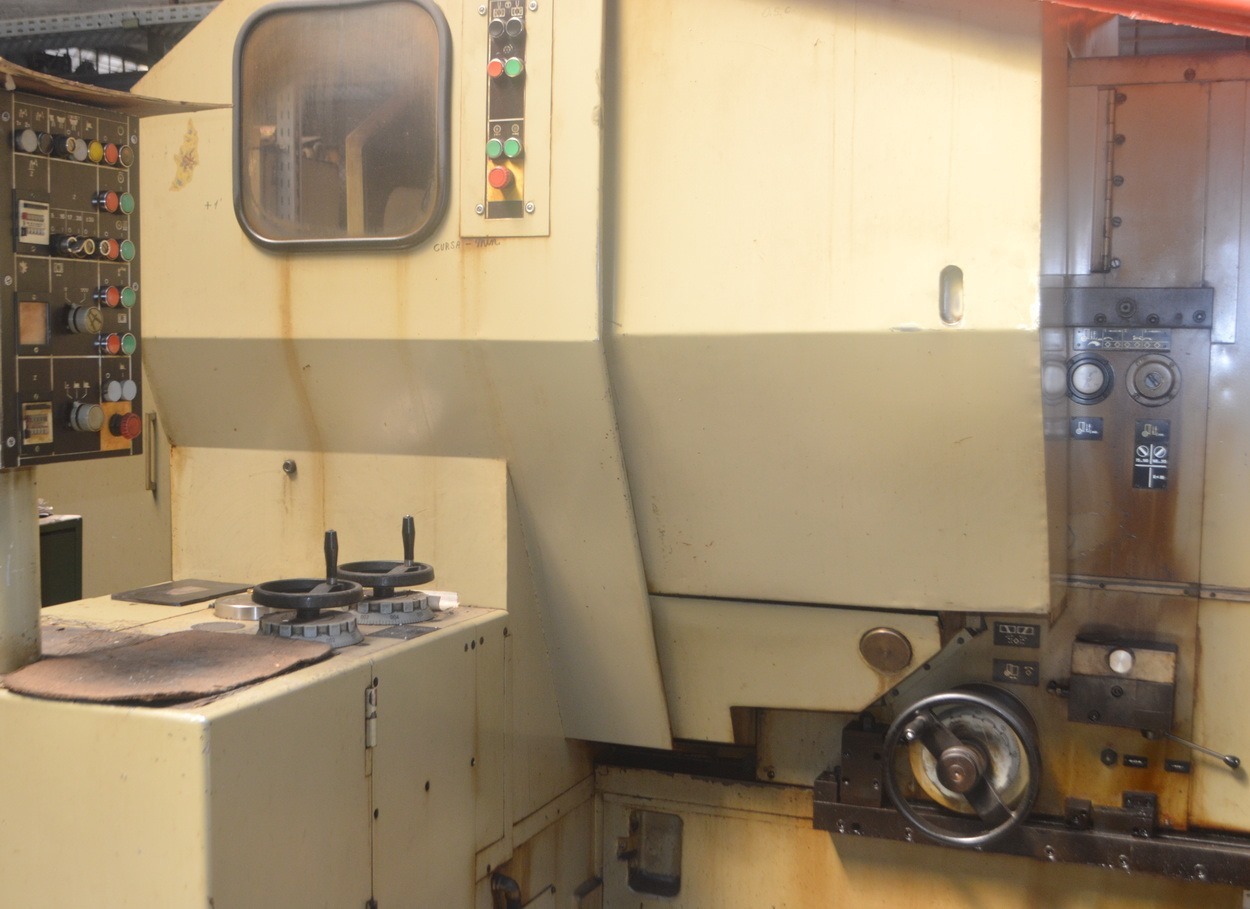

This used ZSTZ 630 C1Z gear grinder is available from A.K. Machine Traders in Navi Mumbai, India. It is a gear grinding machine for finishing the teeth of gears.

It takes gears up to 630 mm in diameter and 215 mm wide, in modules 1–12 with 5–140 teeth. It can grind helical gears up to a 45° helix angle.

Technical Specifications

• Model: ZSTZ 630 C1Z
• Max. gear diameter: 630 mm
• Gear width: 215 mm
• Module: 1–12
• Number of teeth: 5–140
• Max. helical angle: 45°
• Stroke length: 225 mm
• Number of strokes: 75–315 per minute
• Table diameter: 500 mm
• Grinding wheel diameter: 270–350 mm
• Total power requirement: 8.0 kW
• Machine weight: approx. 6.3 t

Applications

• Finishing spur and helical gears
• Gearbox gear manufacture
• Precision gears for industrial machinery
• Gear production and tool room work

Commercial Details

• Make: ZSTZ
• Model: 630 C1Z
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it grind? It handles gears up to 630 mm in diameter and 215 mm wide, in modules 1–12.
• Can it grind helical gears? Yes, up to a maximum helical angle of 45°.
• What power does it need? The total power requirement is 8.0 kW.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which wheels, fixtures and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for a machine of about 6.3 t.
