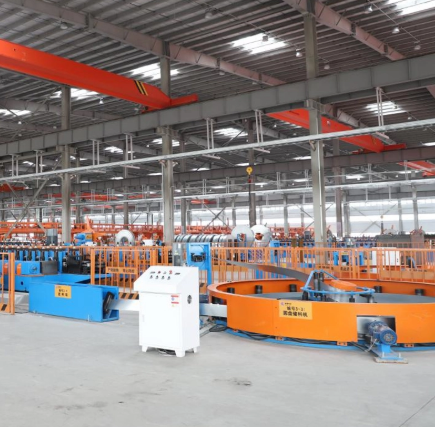

Vertical Strip Accumulator (Looper) 500–800 m | Jinbolida, Shandong, China

Jinbolida Vertical Strip Looper – Heavy-Duty Strip Accumulator for Non-Stop Roll Forming

The Jinbolida Vertical Strip Looper is a heavy-duty strip accumulator that stores up to 500–800 m of steel strip, around 8 tonnes, between the uncoiler and the forming machine. While the line runs, the looper fills with strip. When the coil runs out and the next coil is being loaded and welded on, the looper releases its stored strip, so the forming machine keeps running at full speed. Handling strip from 100 to 400 mm wide at feed speeds up to 80–100 m/min, it removes coil changes as a production bottleneck and raises the utilisation of high-speed continuous lines such as roll formers and tube mills.

How It Works

• A powered feed unit draws strip in from the uncoiler
• Strip is stored on the outside of the accumulator and paid out from the inside
• A full-storage sensor detects when the looper is full
• During coil changes and strip welding, stored strip is released to the forming machine
• An end-of-material sensor detects when the stored strip is running low

Key Features

• Large storage capacity of 500–800 m of strip, up to 8 tonnes
• Keeps the forming machine running at full speed during coil changes and strip joining
• Handles strip widths from 100 to 400 mm
• Feed speeds up to 80–100 m/min
• Full-storage and end-of-material detection
• Sturdy structure for smooth, reliable operation
• Main structure in Q345 steel tube and plate, with 40Cr shafts
• Chinese-brand industrial bearings (HRB and LYC, to be confirmed)

Equipment Included

• Levelling and feeding unit
• Active storage (accumulator) unit
• Discharge feeding unit

Technical Specifications

• Storage capacity: 500–800 m of strip
• Maximum stored weight: 8 t
• Strip width: 100–400 mm
• Maximum feed speed: 80–100 m/min
• Power: 33.5 kW
• Structural materials: Q345 steel tube and plate
• Shafts: 40Cr alloy steel

Applications

• High-speed roll forming lines for purlins, channels and solar brackets
• Tube and pipe mills
• Any continuous strip processing line where coil changes cause downtime

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• What does a strip looper do? It stores a buffer of strip so the forming machine can keep running while the coil is changed and the new strip is joined.
• How much strip can it store? 500–800 m, up to 8 tonnes.
• What strip widths can it handle? 100 to 400 mm.
• How fast can it feed? Up to 80–100 m/min.
• Does it join the coils? No. Coil ends are joined by a separate strip welder, such as Jinbolida's Strip Steel Welding Machine.
• What should I send for a quotation? Strip width and thickness range, material grade, line speed, coil weights, how long your coil changes take, and your local voltage and frequency.
