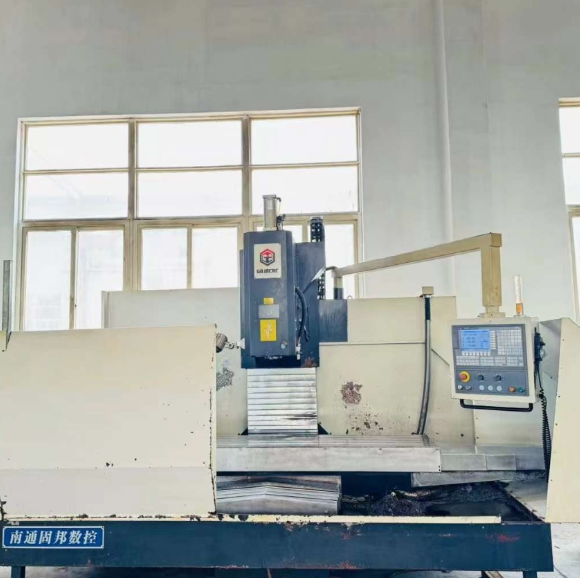

Vigert Ln-1600 CNC Plain Horizontal Mill

VIGERT LN-1600 CNC Plain Horizontal Mill – Full Product Description

The VIGERT LN-1600 CNC Plain Horizontal Mill is a robust and highly capable milling machine designed for professional industrial applications. Known for its strength, precision, and efficiency, the LN-1600 is built to handle a wide variety of complex machining tasks, particularly in sectors requiring high-output production and repeatable accuracy. Whether you are operating in the aerospace, automotive, heavy equipment, or general manufacturing sectors, this machine offers the power and control necessary for demanding horizontal milling operations.

Overview: What is a Horizontal Milling Machine?

The horizontal milling machine is distinguished by the orientation of its spindle. Unlike vertical milling machines where the spindle is vertically aligned, the horizontal mill features a spindle that is mounted horizontally. This unique layout provides advantages in terms of stability, chip evacuation, and the ability to perform heavy-duty milling operations with precision and speed.

The VIGERT LN-1600 belongs to the category of CNC Plain Horizontal Mills, offering a combination of traditional horizontal machine strength with modern CNC automation. This blend of durability and technology makes the LN-1600 ideal for a wide range of industries.

Key Features of the VIGERT LN-1600 CNC Plain Horizontal Mill

1. Horizontal Spindle Orientation

At the core of this machine is its horizontal spindle setup. This orientation allows the cutting tool to work across the workpiece horizontally, offering better support and stability during heavy material removal. The horizontal layout is especially advantageous for slab milling, face milling, and edge machining where surface area and cutting load are considerable.

2. Rigid Construction

The LN-1600 is built on a solid frame structure, designed to minimize vibrations and maintain rigidity under high-load conditions. Its construction includes:

• Base and Column: Provide foundational stability.
• Saddle and Knee: Allow for vertical and longitudinal movement with precision.
• Overarm: Holds the spindle and facilitates Y-axis motion.
• Worktable: Offers X-axis travel and accommodates workpieces of various shapes and sizes.

This heavy-duty frame enables consistent performance and dimensional accuracy over long production cycles.

3. Advanced Spindle System

The horizontal spindle of the LN-1600 is mounted on the overarm and designed for high-speed, high-torque rotation. It supports various cutting tools such as:

• End mills
• Face mills
• Slot drills

These tools are mounted using industry-standard holders or collets, ensuring flexibility and fast tool changes. The fixed spindle design guarantees repeatable precision during automated operations.

4. Large, Versatile Worktable

The rectangular worktable of the VIGERT LN-1600 is engineered for durability and accessibility. It can be moved manually or automatically along the X-axis and features T-slots to securely clamp workpieces or fixtures. This makes it easy to handle a wide range of parts—from small components to larger structural elements.

5. High-Performance CNC System

Equipped with a modern CNC control system, the LN-1600 automates milling operations and optimizes cutting paths for efficiency and accuracy. CNC features include:

• Precise movement on all axes (X, Y, Z)
• Programmable cutting speeds and feed rates
• User-friendly interface for custom programs
• Tool library and offset calibration

This automation reduces operator involvement, shortens setup times, and improves overall productivity.

Cutting Capabilities and Applications

The VIGERT LN-1600 is suitable for a wide variety of milling operations, including:

• Slab Milling: Ideal for quickly removing large amounts of material.
• Face Milling: Used to produce flat surfaces.
• Side Milling: Perfect for creating slots, shoulders, and edges.
• Profile Milling: Enables contouring of complex geometries.

Thanks to the CNC control, users can execute multi-axis, multi-pass operations on materials such as:

• Carbon steel
• Aluminum
• Brass and copper alloys
• Stainless steel
• Plastics
• Composite materials

This versatility makes the LN-1600 a go-to solution for contract manufacturers, repair shops, mold makers, and metal fabricators.

Industries That Use the LN-1600 CNC Horizontal Mill

The LN-1600 serves critical roles in numerous industries:

• Aerospace: Precision components such as airframe brackets, turbine casings, and landing gear elements.
• Automotive: Cylinder blocks, engine heads, transmission housings, and suspension parts.
• Heavy Equipment: Gearboxes, drive components, and structural panels.
• Construction Equipment: Tooling, chassis, and support assemblies.
• General Manufacturing: Custom parts, jigs, fixtures, and prototypes.

Its adaptability to different materials and shapes makes it a truly multipurpose machine.

Shipping and Delivery Time

The VIGERT LN-1600 CNC Plain Horizontal Mill is located in China. Depending on your preference, we offer two main delivery methods:

• By Air Freight: Estimated delivery time is 7 to 10 days.
• By Sea Freight: Estimated delivery time is 30 to 45 days to most global destinations.

We handle all logistics and can assist with export documentation, customs clearance, and delivery to your facility.

Why Choose the VIGERT LN-1600 from Machine Matcher?

• Verified Supplier Network: We only list machines inspected and sourced from trusted suppliers.
• Global Logistics Support: From China to your door, we coordinate every step.
• Technical Knowledge: We understand horizontal mills and can help match you with the right machine for your project.
• Support Team: Whether you need help finding spare parts or scheduling maintenance, we’re just a call or message away.

Common Questions and Answers

Q: What size workpieces can the LN-1600 handle?

The machine is designed to accommodate medium to large workpieces. Contact us with your part dimensions and material to confirm compatibility.

Q: Is this machine fully CNC or semi-automatic?

The VIGERT LN-1600 is a fully CNC-controlled horizontal milling machine, offering programmable motion across all axes.

Q: What types of tools can it use?

It supports end mills, face mills, slot drills, and other rotary tools that can be mounted via standard tool holders or collets.

Q: Does it come with a tool changer?

Depending on the configuration, the LN-1600 may come with a manual or automatic tool changer. Please contact us to confirm tool changer options available on this specific unit.

Q: Can this machine be used for high-production environments?

Yes, it’s ideal for continuous production environments, thanks to its sturdy construction and CNC automation.

Q: Do you offer installation or training services?

We offer remote setup support and can connect you with local technicians or engineers depending on your region. We also provide manuals and virtual onboarding where needed.

Q: What is required for power and installation?

The machine typically requires three-phase industrial power supply. We can help ensure the power requirements match your facility's specifications.

Q: Can you help me source other milling or fabrication machines?

Absolutely. If you're looking for a specific model or machine, we can use our network to locate it for you.

Contact Us for Pricing and Availability

If you're interested in the VIGERT LN-1600 CNC Plain Horizontal Mill, or if you’re looking for a similar machine, contact us directly. We’ll confirm availability, pricing, configuration, and shipping options tailored to your location.
