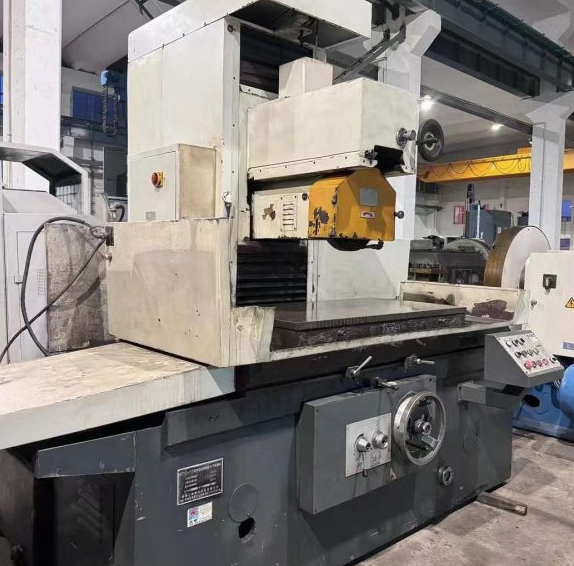

VIGERT Used Planar Grinder M7163 – High Precision Surface Grinding Solution

The VIGERT Used Planar Grinder M7163 is a high-performance surface grinding machine that delivers precision, durability, and reliable operation for demanding industrial applications. Known for its capacity to handle large workpieces and produce smooth surface finishes, this model stands out as an excellent solution for machining shops, toolrooms, and manufacturing plants focused on precision grinding of flat metal surfaces.

Engineered for heavy-duty use, the M7163 offers superior rigidity, high accuracy, and long-term reliability—qualities that make it a valuable asset for manufacturers seeking dependable performance from a used planar grinding machine.

Key Features at a Glance

• Large Grinding Capacity – Max grinding length: 1250 mm; width: 630 mm
• Precision Vertical Movement – Grinding head vertical travel: up to 600 mm
• High Surface Quality – Achieves surface roughness of Ra 0.63 µm
• Heavy-Duty Grinding Wheel – Dimensions: 400x50x203 mm; Speed: 1440 r/min
• Powerful Motor Setup – Total motor power: 13.5 kW; Spindle motor: 7.5 kW
• Hydraulic Feed Control – Variable longitudinal and cross feed
• Digital Display Readout – For enhanced operator control and visibility
• Independent Hydraulic Station – Reduces thermal deformation during operation
• Automatic Lubrication System – Ensures durability and low maintenance
• Robust Frame and Design – Built with an integral bed rail structure

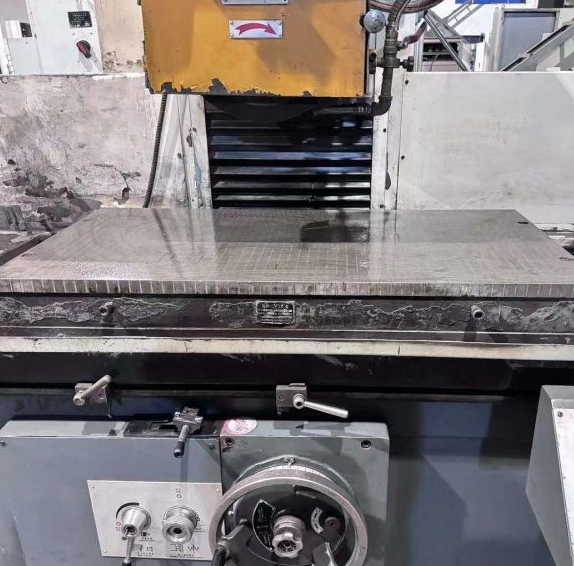

• Electromagnetic Chuck with Demagnetizer – Facilitates easy workpiece handling

Detailed Machine Specifications

Grinding Capacity

The VIGERT M7163 delivers exceptional grinding capacity with a maximum grinding length of 1250 mm and a grinding width of 630 mm. These dimensions allow users to handle large and long workpieces efficiently, making the machine suitable for heavy industrial components, die plates, and base parts that require fine surface finishing.

The vertical travel of the grinding head is 600 mm, which provides ample flexibility for various depth requirements during grinding operations.

Grinding Wheel and Speed

The machine uses a high-grade grinding wheel measuring 400 mm in diameter, 50 mm in width, and a bore size of 203 mm. Rotating at a speed of 1440 revolutions per minute (r/min), this wheel ensures effective material removal while maintaining stability and control during operations.

The design also accommodates fast wheel changes and adjustments, enabling shops to stay productive with minimal downtime.

Motor Power and Drive

Equipped with a total motor power of 13.5 kW, the M7163 offers robust performance even under load. The 7.5 kW spindle motor provides ample torque to drive the grinding wheel with consistency and power across various materials such as hardened steel, tool steel, and cast iron.

This setup allows the machine to handle continuous use in production environments while maintaining performance and accuracy.

Precision and Surface Quality

The M7163 planar grinder excels in producing high-precision finishes. With a surface roughness rating of Ra 0.63 µm, the machine is capable of achieving mirror-like surface finishes. The processing accuracy is maintained within 0.015 mm per 1000 mm, providing confidence in consistent part quality.

These attributes are essential for manufacturers in aerospace, automotive, and mold industries, where tolerances are tight and finish quality directly impacts product performance.

Control System and Feed

The machine is designed with hydraulic control for longitudinal feed, enabling smooth and reliable travel along the bed. This system reduces operator effort and enhances stability during long grinding passes.

The cross feed is also variable, giving the operator full control over feed speed and rate, which is critical when switching between rough grinding and fine surface finishing.

The inclusion of a digital display gives real-time feedback on machine position and feed settings, further supporting high-precision work.

Machine Construction and Design

Integral Bed Rail Structure

The M7163 is constructed with an integrated bed rail frame, which enhances machine rigidity and absorbs vibrations during heavy grinding operations. This structure plays a significant role in prolonging machine life and protecting the accuracy of its components over time.

Hydraulic Station

To prevent thermal deformation—often a concern during extended use—the machine features an independent hydraulic station, isolated from the main frame. This smart design reduces heat transfer and ensures consistent operation across long shifts.

Automatic Lubrication

Maintenance is made simple and efficient with a fully automatic lubrication system that continuously supplies oil to critical moving parts. This reduces wear and extends the lifespan of key components, contributing to long-term reliability.

Workpiece Handling

A key convenience feature is the inclusion of an electronic demagnetization device, which makes loading and unloading of magnetic workpieces easier. This significantly reduces downtime between jobs and helps the operator maintain a smooth workflow.

Versatility and Applications

The VIGERT Used Planar Grinder M7163 is suitable for a wide range of applications across sectors such as:

• Tool and Die Manufacturing
• Heavy Equipment and Machinery Components
• Precision Automotive Parts
• Steel Plate Finishing
• Mold and Die Bases
• Machine Beds and Frames

Its strength lies in producing accurate flat surfaces, ensuring minimal deviation and maximum repeatability, especially where post-machining processes like assembly or coating depend on high-quality finishes.

Machine Location and Shipping

This VIGERT M7163 machine is currently located in China. Shipping options vary depending on your needs:

• By air: Delivery in approximately 7–10 days for urgent requirements
• By sea: Delivery in around 30–45 days, which is more economical for heavy machinery

We work with trusted international logistics partners to ensure safe, insured, and on-time delivery.

Why Choose This Used Planar Grinder?

• Cost-effective alternative to new machines, with the same high-grade performance
• Thoroughly inspected and tested for operational accuracy
• Perfect for expanding capacity without major capital investment
• Ready for immediate delivery and integration into your workshop
• Supported by Machine Matcher’s global sourcing and after-sales support network

Question and Answer Section

Is this machine suitable for continuous production environments?

Yes, the M7163 is built for industrial use and can handle continuous workloads. Its powerful spindle motor, hydraulic feed system, and robust construction make it suitable for demanding production settings.

Can I use this grinder for hardened steel or alloyed materials?

Absolutely. With a high-performance grinding wheel and strong motor, the machine can process hardened and heat-treated steels with ease, delivering accurate surface finishes.

Does the machine come tested and ready to run?

Yes. All used machines listed through Machine Matcher, including this one, are thoroughly tested before shipping. Our team verifies mechanical accuracy, electrical systems, and grinding performance.

Can I get support after purchasing this machine?

Yes. Machine Matcher offers global customer support and can assist with parts, servicing, and installation guidance if needed. We also help arrange third-party inspection services if required.

How do I arrange shipping?

Once you confirm your order, we will handle all logistics for air or sea freight. We will share shipping timelines and assist with all documentation required for customs clearance.

Contact Machine Matcher

If you are looking for a specific machine or need help choosing the right grinding solution for your workshop, get in touch. We’ll use our global network to find the best match.

• UK: +44 20 335 56554
• USA: +1 407 559 7948
• Europe: +32 460 24 13 95
• WhatsApp: +44 20 335 56554
• Email: [email protected]

Whether you’re expanding production, upgrading your machining capabilities, or adding a reliable grinder to your shop, the VIGERT Used Planar Grinder M7163 delivers the performance and precision you need—without the cost of a new machine. Let Machine Matcher help you find the right fit for your business.
