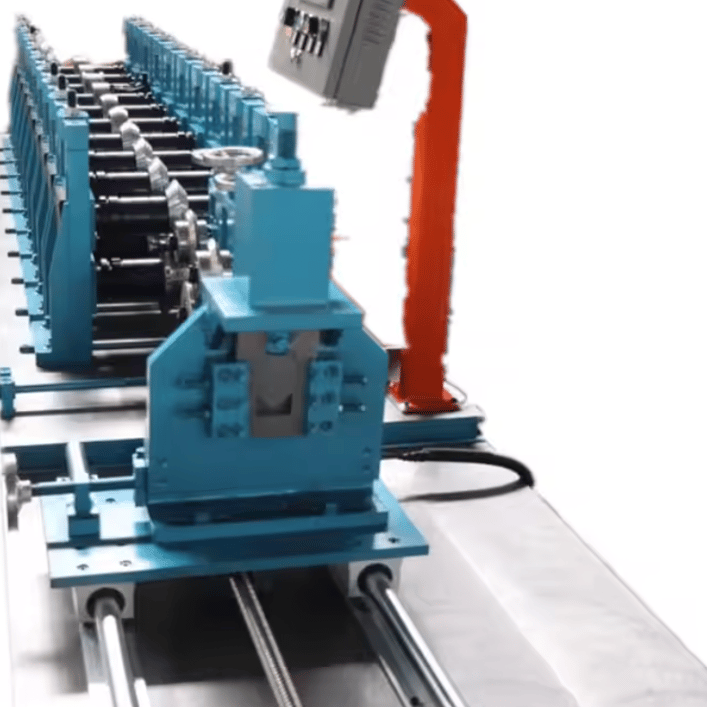

Wall Angle Roll Forming Machine – UAE

•
•
•

Wall Angle Roll Forming Machine – Supplied by Machine Matcher in the UAE

Machine Matcher is proud to offer precision-engineered Wall Angle Roll Forming Machines, tailored for the United Arab Emirates market, including Abu Dhabi, Dubai, and Sharjah. These machines are designed to produce high-quality L-shaped wall angle profiles, essential for suspended ceiling systems and interior framing applications.

Industries Served

Our Wall Angle Roll Forming Machines cater to various sectors:

• Construction & Building Materials: Manufacturing components for suspended ceilings and partition systems.

• Interior Fit-Out & Drywall Systems: Producing precise wall angle profiles for aesthetic and structural purposes.

• HVAC & MEP Contractors: Creating support structures for ductwork and piping installations.

• Architectural Finishing: Fabricating decorative trims and edge protections.

These machines are integral in producing consistent and accurate profiles, ensuring efficiency and quality in various construction and interior applications.

Machine Type & Capabilities

• Machine Type: Fully Automatic Wall Angle Roll Forming Machine

• Production Speed: Up to 40 meters per minute, depending on material and profile specifications

• Material Thickness Range: 0.3 mm to 0.6 mm

• Material Width Range: Customized based on profile requirements

• Material Types: Galvanized Steel (GI), Hot Rolled Steel (HRC), Stainless Steel

• Material Yield Strength: 235–390 MPa

• Roller Material: Cr12 or Cr12MoV, heat-treated for durability

• Roller Surface Treatment: Chromed for corrosion resistance

• Number of Forming Stations: Typically 10–14 stations

• Roller Shaft Diameter: 40 mm to 50 mm

• Shaft Material: 45# or 40Cr Steel, heat-treated and chrome-coated

• Main Drive Type: Gear Transmission

• Motor Power: 5.5 kW to 7.5 kW, depending on machine configuration

• Cutting Method: Hydraulic cutting with non-stop operation

• Blade Material: Cr12MoV, quenched to HRC 58–62

• Control Type: PLC Control System (e.g., Delta, Siemens)

• Operating Mode: Fully Automatic with Touch Screen Interface

• De-coiling System: Manual or Hydraulic Decoiler, capacity up to 2.5 tons

• Punching/Notching System: Optional high-speed rotary punching available

• Machine Frame: Welded Steel Structure with 20 mm thick side panels

• Thickness of Frame Steel: 20 mm

• Profile Shape: L-shaped wall angle profiles

• Profile Width and Depth: Customized as per client specifications

• Length Tolerance: ±0.5 mm per 3 meters

• Safety Features:

  • Protective Covers/Guards

  • Emergency Stop Button

  • Overload Protection System

Customization Options

Machine Matcher offers extensive customization to meet specific production needs:

• Profile Dimensions: Tailored to exact width and depth requirements.

• Material Compatibility: Adaptable to various material types and thicknesses.

• Automation Level: Options for semi-automatic or fully automatic operations.

• Additional Features: Integration of punching, notching, or embossing units as needed.

Clients are encouraged to provide profile drawings or specifications to ensure the machine is built to exact requirements.

Delivery & Support

• Location: All machines are new and custom-built, delivered directly to any location within the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah.

• Installation Support: Remote video guidance is available, with on-site installation support upon request.

• Lead Time: Production typically takes 30–60 days. Shipping time varies based on the destination port.

• Warranty: All machines come with a one-year warranty from the date of dispatch, including durable maintenance and repair support.

Pricing Information

• Starting Price: Prices for a standard Wall Angle Roll Forming Machine start at approximately $30,000 USD.

• Factors Affecting Final Price:

  • Level of customization

  • Additional features (e.g., punching units, automation level)

  • Material specifications

  • Shipping and installation requirements

For a tailored quote based on specific needs, please contact Machine Matcher directly.

Frequently Asked Questions

Q: Can the machine be customized for our specific wall angle profile?
A: Yes, Machine Matcher specializes in custom-built machines tailored to your exact profile specifications.

Q: What materials are compatible with this machine?
A: The machine is designed to work with galvanized steel, hot rolled steel, and stainless steel, typically within a thickness range of 0.3 mm to 0.6 mm.

Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available upon request.

Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days, and shipping time depends on the destination port.

Q: What is the warranty period for the machine?
A: All machines come with a one-year warranty from the date of dispatch, including maintenance and repair support.

Unique Selling Propositions (USPs)

• Precision Engineering: Ensures consistent and accurate profile production, reducing material waste.

• High Efficiency: Fast production speeds up to 40 meters per minute increase throughput.

• Customization: Machines are tailored to meet specific profile and material requirements.

• Comprehensive Support: From design consultation to after-sales service, Machine Matcher provides end-to-end support.

• Competitive Pricing: Offers high-quality machines at competitive prices, ensuring value for investment.

These advantages translate to cost savings, improved productivity, and enhanced product quality for buyers.

For inquiries or to receive a customized quote, please email your profile drawings and specifications to:

📧 [email protected]

All machines are exclusively supplied by Machine Matcher, ensuring quality and reliability.
