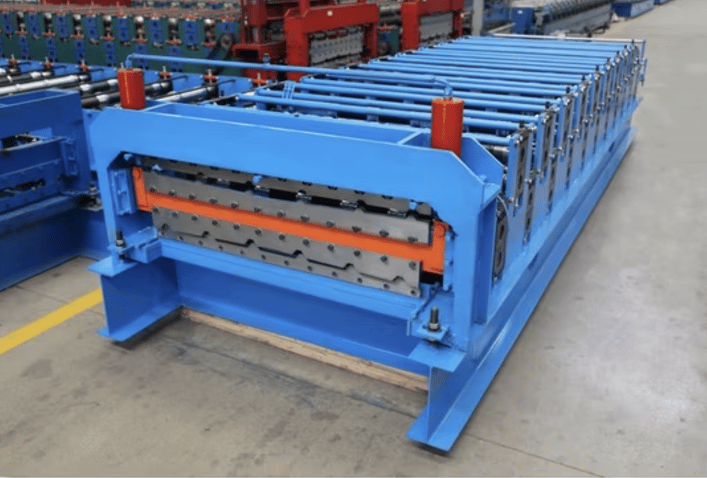

Wall Panel Machine Roll Forming Machine USA

A wall panel roll forming machine is a specialized piece of equipment designed to manufacture high-quality wall panels from metal coils. These machines are used extensively in the construction industry for producing panels used in residential, commercial, and industrial buildings. Wall panels created with this machine offer superior durability, insulation, and aesthetic appeal.

The machine’s primary function is to shape metal coils into desired panel profiles through a continuous roll forming process. It is known for its efficiency, precision, and capacity to produce panels with consistent dimensions and finishes.

Machine Features

• Material Compatibility: Works with steel, aluminum, galvanized steel, and pre-painted coils.
• Production Speed: High-speed operation ranging from 15 to 40 meters per minute, depending on the model.
• Automation: Includes advanced PLC systems for seamless operation and reduced manual intervention.
• Customization: Capable of producing various panel profiles tailored to different architectural designs.
• Durability: Built with high-grade materials to withstand long-term industrial usage.

Specifications of the Wall Panel Roll Forming Machine

1. Material Input
   • Material Thickness: 0.4mm–1.2mm
   • Material Width: 1000mm–1250mm (depending on panel profile)
   • Material Type: Galvanized steel, aluminum, pre-painted steel
2. Machine Structure
   • Frame Construction: Heavy-duty steel frame for stability
   • Roller Materials: High-grade chrome-plated steel
   • Roller Stations: 12–20 stations (varies by model)
   • Drive System: Chain drive or gear drive
3. Performance
   • Machine Speed: Up to 40 meters per minute
   • Precision: Tolerance ±0.5mm
   • Cutting System: Hydraulic or servo-driven cutting system for precise panel lengths
4. Control System
   • Automation: Fully automatic PLC control system with touch-screen interface
   • Language Options: English interface for easy operation in the USA
   • Data Input: Length, batch size, and panel type programmable
5. Power Supply
   • Voltage: 220V/60Hz or 440V/60Hz (customizable for USA power standards)
   • Motor Power: 7.5 kW–15 kW
6. Optional Accessories
   • Decoiler (manual or hydraulic)
   • Stacker for panel collection
   • Coil feeding and guiding system
   • Embossing or perforation units
   • Pre-punching system

Common Applications

• Industrial and commercial building facades
• Residential wall claddings
• Insulated panels for cold storage
• Decorative wall panels for interior designs

Question and Answer Section

Q1: What materials can be used with a wall panel roll forming machine?

A wall panel roll forming machine is compatible with galvanized steel, pre-painted steel, aluminum, and other coated metal coils within the specified thickness range.

Q2: How fast can the machine produce wall panels?

Depending on the model, the machine can produce panels at speeds of 15 to 40 meters per minute.

Q3: Is it possible to customize panel profiles with this machine?

Yes, most wall panel roll forming machines allow for customization to create unique panel profiles. This can be achieved by modifying the roller dies or adding optional accessories.

Q4: How does the machine ensure precision in panel dimensions?

The machine uses advanced PLC control systems and servo-driven cutting mechanisms to ensure precise dimensions with tolerances as tight as ±0.5mm.

Q5: What power supply is required for the machine in the USA?

The machine can be customized to suit USA power supply standards, typically 220V/60Hz or 440V/60Hz.

Q6: Can the machine handle pre-painted or coated coils without damaging the surface?

Yes, the rollers are designed with chrome plating or other protective coatings to prevent scratches and damage to pre-painted or coated metal surfaces.

Q7: What maintenance is required for the machine?

Regular maintenance includes:

• Cleaning and lubricating the rollers and chains
• Inspecting the hydraulic and electrical systems
• Checking for wear and tear on critical components like cutters and rollers

Q8: Can the machine integrate with other equipment like stackers or decoilers?

Yes, the machine can integrate with additional equipment like hydraulic decoilers, stackers, and coil handling systems for enhanced automation and efficiency.
