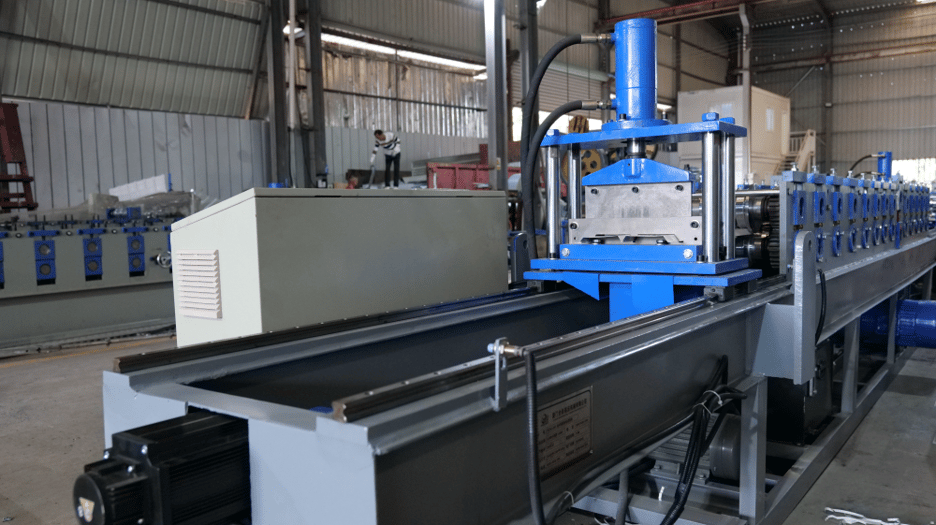

Wall Panel Roll Forming Machine with Embossing | Beenew, Xiamen, China

Beenew's Wall Panel Roll Forming Machine forms colour steel coil into metal wall panels, with an embossing unit that adds a surface texture to the panel. This machine takes coil about 310 mm wide and 0.6 mm thick.

The rollers are finely machined 45# steel, hard chrome plated and brushed. The main frame here is H200 steel; Beenew chooses the frame section to suit the machine's duty and the customer's panel.

Key Features

• Built-in embossing
• Hard-chromed, brushed 45# steel rollers
• H200 steel main frame
• Profile built to customer drawing

Technical Specifications

• Material: Colour steel coil, Q235
• Thickness: 0.6 mm
• Feed width: About 310 mm
• Rollers: 45# steel, hard chrome plated and brushed
• Frame: H200 steel
• Embossing: Yes

Applications

• Interior and exterior metal wall panels
• Decorative cladding for commercial and residential buildings

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• Does it emboss the panels? Yes. Embossing is part of this machine.
• What coil does it take? Colour steel coil about 310 mm wide and 0.6 mm thick.
• Can other panel profiles be made? Yes. Beenew builds the machine to your panel drawing.
• What should I send for a quotation? Your panel drawing, material and thickness, embossing pattern and output target.
