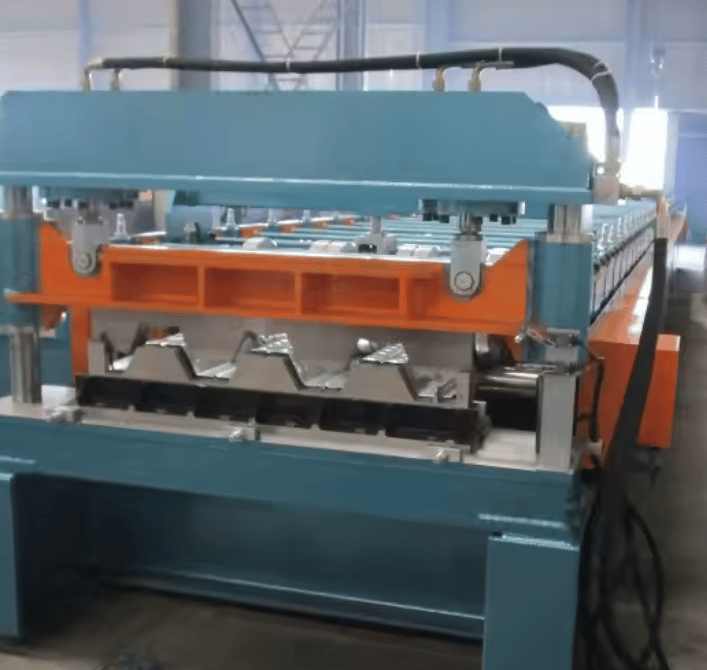

Wide Rib Roof Deck Roll Forming Machine – UAE

Wide Rib Roof Deck Roll Forming Machine – UAE Specification & Product Overview

The Wide Rib Roof Deck Roll Forming Machine is designed to manufacture high-strength, wide-ribbed metal decking used primarily for roofing systems in commercial, industrial, and infrastructure projects. Tailored for the UAE construction market, this machine combines robust engineering with automation, allowing reliable high-speed production with precise shaping of heavy-gauge steel into structural deck panels that meet international and local building codes.

This machine is a critical investment for metal decking suppliers, steel structure contractors, roofing system manufacturers, and construction companies looking to streamline roof deck fabrication across cities such as Dubai, Abu Dhabi, Sharjah, and Al Ain.

Product Description

The Wide Rib Roof Deck Roll Forming Machine is engineered for producing structural wide rib metal deck profiles that are typically used in load-bearing roofing applications. These profiles offer excellent span capacity and composite action when combined with concrete, making them ideal for large-scale commercial buildings, stadiums, warehouses, and high-rise towers across the UAE.

Built with a solid steel frame and precision-machined rollers, the machine can process high-tensile galvanized steel coils and form them into uniform deck panels with exacting tolerances. The system includes an automated cutting mechanism, PLC control unit, and safety guards, ensuring both production efficiency and operator safety.

This machine is custom-built to match the customer's required deck profile and can be modified for wide rib variants, making it compatible with common specifications used in Gulf construction standards.

Technical Specifications

• Machine Type: Wide Rib Roof Deck Roll Forming Machine
• Production Speed: 12–18 meters per minute
• Material Thickness Range: 0.7–1.5 mm
• Material Width Range: 1000–1350 mm (depending on profile design)
• Material Types: Galvanized steel (GI), Galvalume, PPGI, Cold-rolled steel
• Material Yield Strength: Up to 550 MPa
• Roller Material: GCr15 (bearing steel), heat-treated
• Roller Surface Treatment: Hard chrome plating for corrosion resistance
• Number of Forming Stations: 22–26 stations (varies with profile complexity)
• Roller Shaft Diameter: 75 mm
• Shaft Material: High-grade 45# steel, precision-machined
• Main Drive Type: Gearbox-driven or chain-driven system
• Power (UAE compatible): 380V / 3Phase / 50Hz
• Motor Power: 15–22 kW depending on deck profile and machine length
• Cutting Method: Hydraulic post-cutting (non-stop cutting)
• Blade Material: Cr12MoV, heat-treated and hardened
• Control Type: Fully automatic PLC with HMI touch screen
• Operating Mode: Automatic and manual modes available
• De-coiling System: Hydraulic or manual uncoiler (5–10 tons capacity)
• Punching/Notching System: Optional (pre-cut or post-punch available upon request)
• Machine Frame: Welded structural steel, stress-relieved
• Thickness of Frame Steel: 20–25 mm
• Profile Shape: Wide Rib (trapezoidal deck)
• Profile Width and Depth: Up to 1000 mm wide, 50–80 mm rib height
• Length Tolerance: ±1.5 mm per 6-meter section
• Safety Features:
  • Protective covers and guards
  • Emergency stop buttons
  • Overload protection system

Industries This Machine Is For

• Roof Decking Suppliers & Installers
• Steel Structure Contractors
• Industrial Building Developers
• Pre-engineered Building (PEB) Manufacturers
• Commercial Construction Firms
• Infrastructure Project Developers

Prices Start From

USD $85,000 (FOB)

Note: Prices vary based on profile size, automation level, and optional systems.

What Affects the Final Price?

• Profile complexity and customization
• Motor and drive system upgrades (e.g., servo vs. hydraulic)
• Leveling system or notching unit
• Automatic stacker or coil handling systems
• Control system brand (Siemens, Delta, Mitsubishi, etc.)
• Volume of order or bundled machines

For a tailored quote, please email your profile drawing, coil specs, and project requirements to: [email protected]

Location & Delivery

All machines are new and custom-built to meet your specific profile and production needs.

Delivery available across the UAE, including:

• Abu Dhabi
• Dubai
• Sharjah
• Ajman
• Ras Al Khaimah

Warranty & Support

• One-year warranty from the date of dispatch
• Remote troubleshooting support
• On-site installation, commissioning, and training available upon request
• Spare parts and maintenance packages available

Frequently Asked Questions

Q: What kind of coil should I use with this machine?

A: High-tensile galvanized steel coils (up to 550 MPa yield strength) in thicknesses ranging from 0.7 mm to 1.5 mm are recommended.

Q: Can the machine be adjusted for different wide rib deck profiles?

A: Yes. The machine can be custom-built for multiple profile widths and depths. Provide a drawing or sample to get an exact configuration.

Q: What type of power is needed in the UAE?

A: Machines are configured for 380V / 3-phase / 50Hz, which is standard for industrial use in the UAE.

Q: Can you help with shipping and installation in the UAE?

A: Absolutely. We offer delivery, installation, and operator training across the UAE.

Q: What is the production capacity per shift?

A: At a speed of 12–18 m/min, you can produce approximately 3,500–5,000 meters per 8-hour shift, depending on downtime and coil length.

For more details or a custom machine quote, email your specifications and profile drawings to [email protected].
