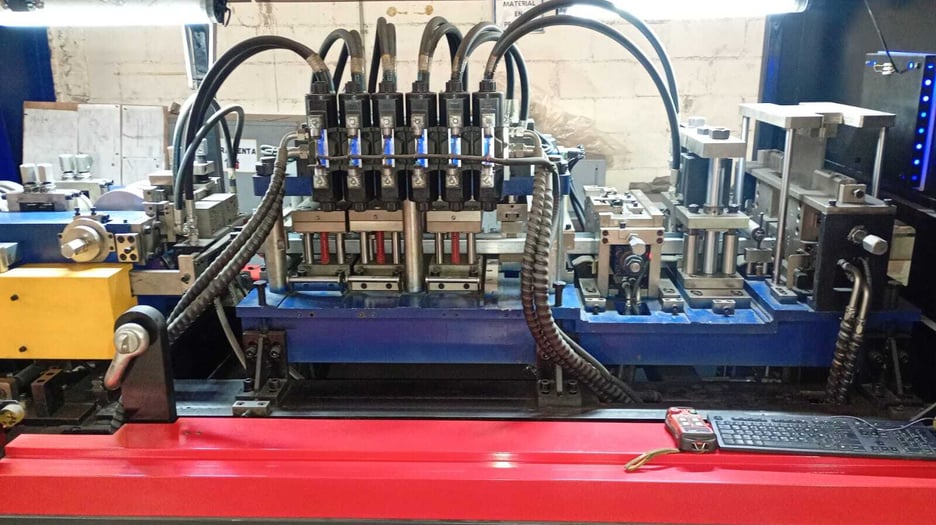

Xiamen Metoform Technology MF1600T fully automatic multi-profile light gauge steel framing roll forming system

• Location: Tijuana, Baja California, Mexico
• Price: On Demand

Condition: Like New / Extremely Low Hours / Fully Operational

For sale is a Xiamen Metoform Technology MF1600T fully automatic multi-profile light gauge steel framing roll forming system. The machine has seen very limited use, is in excellent condition, and is currently fully operational and available for inspection under power in Tijuana, Baja California, Mexico, minutes from the U.S. border.

The MF1600T is designed to manufacture multiple sizes of structural light-gauge steel framing from a single automated production line. Profile width is automatically adjustable through the control system, allowing different stud and track sizes to be produced without changing forming tooling or cutters.

FORMING CAPACITY

• Material thickness: 0.75–1.60 mm / approximately 22–16 gauge
• Profile/web width: Fully adjustable 75–160 mm / 2.95–6.30 in.
• Standard profile widths: 75 mm, 89 mm, 92 mm, 140 mm, plus intermediate/custom widths within the machine's adjustment range
• Profile type: C-shaped light-gauge steel framing
• Flange: Approximately 41 mm / 1.61 in.
• Lip: Adjustable 8–15 mm
• Material: Galvanized / zinc-coated high-tensile steel coil, including G500/G550-type material

PRODUCTS / APPLICATIONS

The machine can manufacture profiles for:

• Structural steel wall studs
• Wall tracks
• Load-bearing wall framing
• Non-load-bearing partition studs
• Floor framing / light-duty joist applications
• Roof and truss framing components
• Modular and prefabricated building frames
• Residential light-gauge steel framing
• Commercial light-gauge steel framing

INTEGRATED OPERATIONS

Complete automated production line incorporating:

• Hydraulic decoiler
• Coil feeding and leveling
• Automatic profile-width adjustment
• Pre-punching
• Roll forming
• Post-punching
• Automatic length measurement
• Hydraulic cutting
• Dual-side inkjet printing / component identification
• Automated control system with 21-inch touchscreen
• Run-out table

Integrated tooling provides multiple fabrication operations including:

Service holes • Bolt holes • Web notches • Lip cuts • Chamfer cuts • Swaging • Dimple holes • Automatic cut-to-length

Punching accuracy is rated at approximately ±0.5 mm.

MACHINE SPECIFICATIONS

• Main servo motor: 15 kW
• Hydraulic motor: 11 kW
• Total machine power: Approximately 29 kW
• Standard production speed: Approximately 400–900 meters/hour
• Machine dimensions: Approximately 8.0 m × 1.71 m × 2.0 m
• Machine weight: Approximately 8,100 kg / 17,850 lb
• Decoiler capacity: 3,000 kg / 6,600 lb
• Control: LG-R1 system with 21-inch touchscreen
• CAD/CAM production capability: Designed for integration with structural framing design software

CONDITION

Practically new with very limited production use. Machine is fully operational and can be demonstrated under power prior to purchase.

Location: Tijuana, Baja California, Mexico
Inspection: Available by appointment
Machine status: Installed and operational
Availability: Immediate
