Z Purlin / C-Z Purlin Roll Forming Machine | MNM, Binh Duong, Vietnam

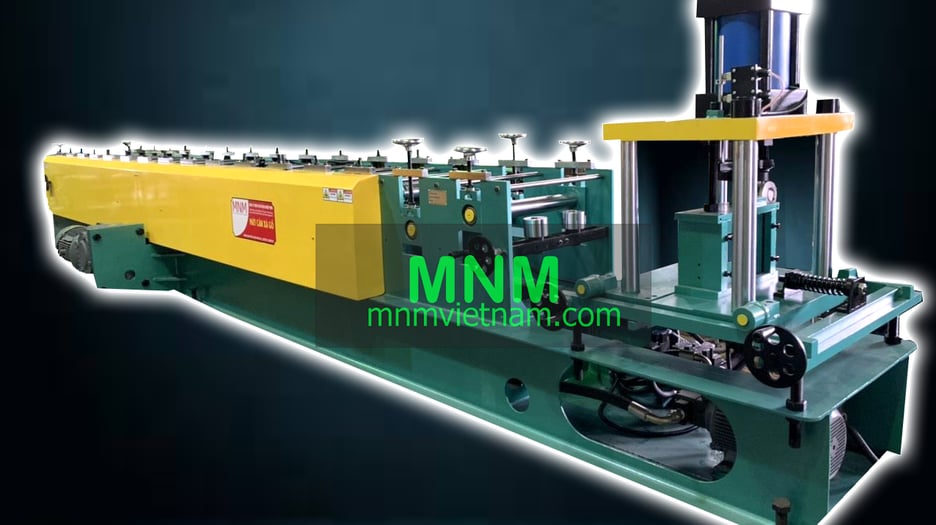

MNM's Z Purlin Roll Forming Machine produces Z purlins, and can be built as a C/Z machine that makes both C and Z sections. Z purlins nest together at laps, which makes them the usual choice for continuous purlin runs over large roofs.

The line has 14 to 20 forming stations on 70–80 mm shafts and is configured to the customer's purlin sizes.

Technical Specifications

• Total power: 11–18.5 kW
• Weight: 6–9 t
• Rolling speed: 16–18 m/min
• Forming stations: 14–20
• Shaft diameter: Ø70–80 mm

Applications

• Roof purlins and wall girts in steel buildings
• Lapped purlin runs on large-span roofs
• Warehouses and factories

Commercial Details

• Brand: MNM
• Manufacturer: MNM Industrial Mechanical Limited Company
• Place of origin: Thuan An City, Binh Duong, Vietnam

Frequently Asked Questions

• Can it make C purlins too? It can be built as a C/Z machine for both.
• How fast is it? 16–18 m/min.
• What should I send for a quotation? Your purlin drawings, size range, material and thickness, punching needs and output target.
