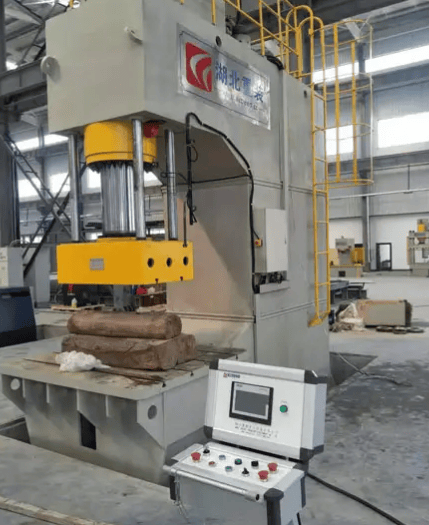

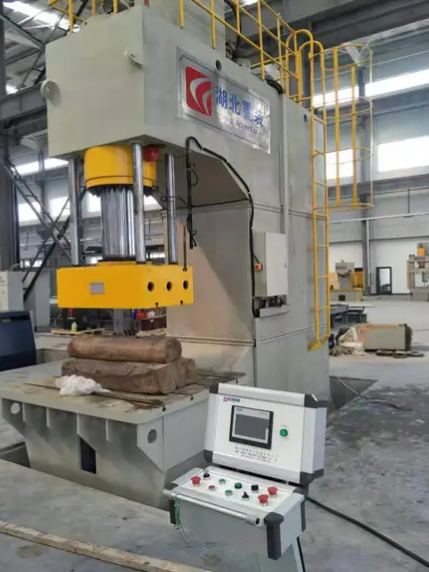

EZHONG 500T Hydraulic Press – PLC-Controlled Pressing, Straightening and Press-Fitting

The EZHONG 500T hydraulic press delivers up to 500 tonnes of force for straightening, press-fitting, forming and trimming of metal parts, and for pressing powder products. It has its own independent hydraulic power unit and electrical system, PLC control, and a choice of fixed-stroke or fixed-pressure operation, so the same machine can press parts to a precise depth or to a set force. Chrome-plated guide columns and piston rod, a filtered pump inlet and imported high-pressure hoses keep it accurate, quiet and long-lasting. EZHONG states the design draws on German and Japanese technology and is protected by its own intellectual property.

Key Features

• 500-tonne pressing force
• Independent hydraulic power unit and electrical system
• Hydraulic system built into the machine body for a compact, tidy layout
• PLC-controlled process actions with centralised push-button control
• Two operating modes: inching (manual step) and semi-automatic
• Two forming modes: fixed stroke or fixed pressure
• Pressure display, with adjustable stroke and pressure
• Guide columns and piston rod quenched, then copper and hard-chrome plated for wear resistance and smooth surface finish
• Filter at the pump inlet to protect the pump and valves
• Imported high-pressure hoses for lower noise
• Integral welded steel structure for stability
• Built to EC safety standards with CE certification

Safety

• Pressure relay shutdown and overflow valve protection against overpressure
• Emergency stop buttons on the machine and at the control console
• Oil temperature alarm and automatic stop at 60°C
• Electrical and mechanical safety interlocks

Technical Specifications

• Model: 500T
• Nominal force: 500 tonnes (approx. 4,900 kN)
• Maximum hydraulic working pressure: 25 MPa
• Effective stroke: 800 mm
• Maximum opening height: 1,600 mm
• Pressing speed: 10–15 mm/s
• Motor power: 44 kW
• Control: PLC with push-button console
• Operating modes: Inching and semi-automatic; fixed stroke or fixed pressure
• Certification: CE

Applications

• Straightening shafts and other metal parts
• Press-fitting bushes, sleeves and bearings
• Shaping, forming and trimming metal products
• Pressing non-metallic powder products
• Motor and appliance assembly (automotive motors, air-conditioning motors, washing machines)
• Machine tool, internal combustion engine and textile machinery manufacturing
• Plastic product forming

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE

Frequently Asked Questions

• What force does it deliver? Up to 500 tonnes, with a maximum hydraulic pressure of 25 MPa.
• What's the difference between fixed-stroke and fixed-pressure mode? Fixed stroke presses to a set position, which suits press-fitting to a depth. Fixed pressure presses to a set force, which suits straightening and forming.
• What operating modes are available? Inching (step-by-step manual) and semi-automatic cycles.
• How large a part can it take? The maximum opening height is 1,600 mm with an 800 mm stroke. Ask EZHONG for the table size for your parts.
• Can it be customised? Ask EZHONG about force, stroke, table size and tooling for your application.
• What should I send for a quotation? Part type, size and weight, the process (straightening, press-fitting, forming), required force and stroke, cycle time, and your local voltage and frequency.
