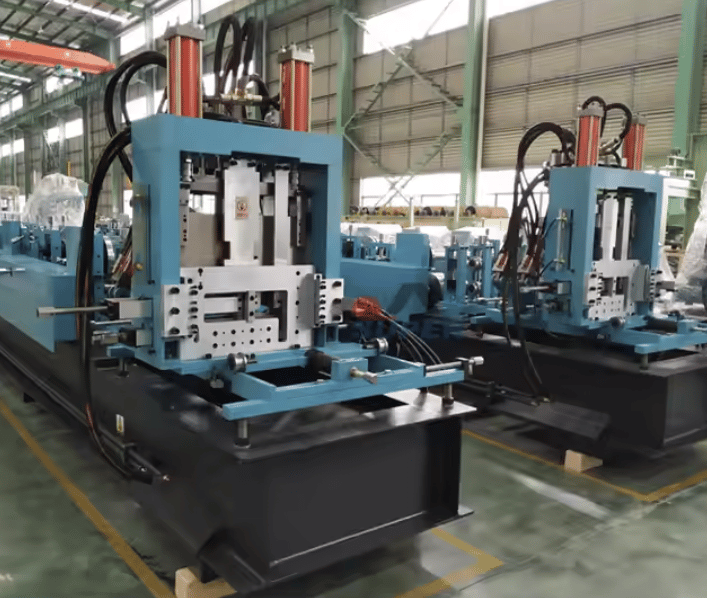

Automatic Interchangeable CZU Lipped Channel Purlin Roll Forming Machine in China
- Condition
- New
- Supplier
- Nantong Super Machinery Co., Ltd
- Country
- China
- Category
- Listing ID
- 6095
Request a Quote
To express an interest in this machine please submit the form below.
View more information and all machines from this supplier here
|
Production Capacity |
30 m/min |
|
Place of Origin |
Jiangsu, China |
|
Weight |
11000 kg |
|
Warranty |
3 years |
|
Key Selling Points |
Easy to Operate |
|
Core Components |
Motor, Bearing, Gear, Pump, PLC |
|
Brand Name |
SUPER |
|
Dimension(L*W*H) |
11*1.5*1.7M |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Name |
Interchangeable C Z Purlin Roll Forming |
|
Material Thickness |
1.0-3.0mm |
|
Control System |
PLC control Panel |
|
Shaft Material |
40Cr 80mm |
|
Roller Material |
GCr12 |
|
Cutter Blade Material |
Cr12MoV |
|
Forming Speed |
16-20m/min |
|
Roller Station |
22 Stations |
