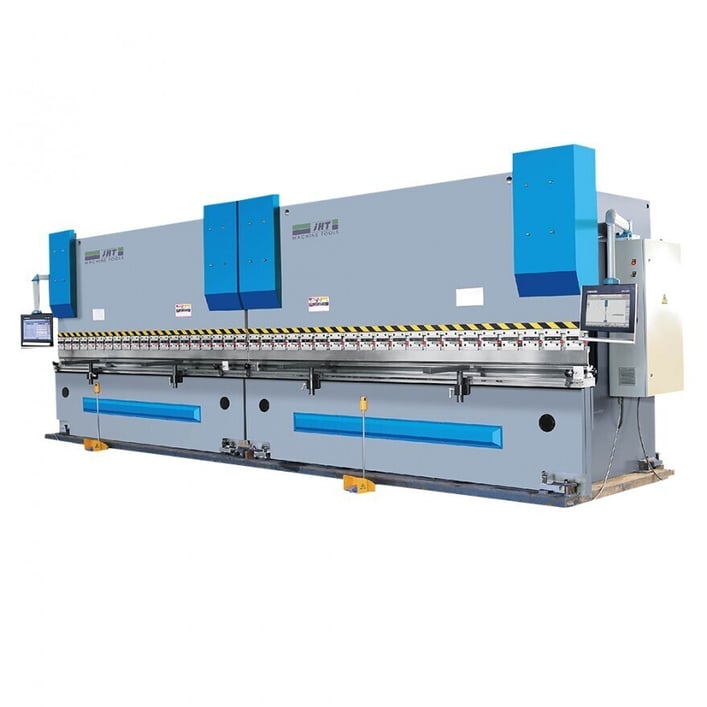

CNC Electro Hydraulic Press Brake 200T8000

View more here CNC Electro Hydraulic Press Brake With Delem DA56S System 4+1 Axis 200T8000

New $72,000.00

Main Configuration

· Adopting Holland DELEM DA56S CNC controller

· Grating ruler controls depth of Y1 and Y2 axis ( Y 1 / Y 2-axis 0.01mm )

· Servo motor drive and control X axis ( X-axis 0.01mm ), manually adjusts R axis, stop finger can be easily moved along the cylindrical guide rail.

· HIWIN ball screw and linear guide rail accuracy of 0.01mm

· Front supporter can be moved along the linear guide rail in the workbench direction

· Germany Rexroth fully closed-loop electro-hydraulic servo synchronously controls the system

· Germany EMB oil tube connectors

· Germany Siemens main motor

· France Schneider Electrics

· Hydraulic and electrical overload protection

· Upper are mechanical fast pinching dies. Lower are double-V quick changing dies

III. Safety Standards

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

· Front finger protection device ( safety light curtain )

· South Korea KACON pedal switch ( 4 security grade )

· Back metal safeguard, CE standard

· Safety relay monitors completed with pedal switch, safety protection devices

· Safety standard（2006／42／EC）

IV. Holland Delem DA56S Controller

· 10″broadband TFT color display, LCD back lighting

· Standard configuration Y1-Y2-X axes, R axis can be served as Z or X2 axis as well

· 500MHZ processor, memory capacity of 256M

· Die library, 30 upper dies, 60 lower dies

· USB memory interface, RS-232 joint, internet (100Mb / 10Mb ) interface, power-off memory, integrated valve amplifier

· Real-time Windows operating platform to ensure the stability of the operation, support instant shutdown

· 2-D graphic programming, determining bending procedure, calculating rolled-out length, automatically calculating bending procedure

· Automatically calculate workbench deflection compensation value

· Advanced Y axis control algorithm, control closed-loop or open-loop valve

· Online operation analysis tool, diagnostic dashboard, and angle calibration database

Main Features

Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simple appearance.

· Latest high-frequency responding hydraulic control technology, faster, more efficient and high precision.

· Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of EHP series Press Brakes.

· Optimal ratio of parameters and top-level core configuration ensure stable performance, and easy operation.

· EHP standard 2 shafts back gauge system, as to complex shape work pieces ,4 or 5 shafts back gauge system and corresponding dies are available for your option.

· Press Brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2 ) running on the same frequency, maintaining the parallel state of the workbench.

· According to state of sheet metal on the Press Brake, CNC system can automatically control deflection compensation value resulting in identical angle and length of all workpieces.

· The use of hydraulic deflection compensation gives access to uniform full length workpieces . Hydraulic deflection compensation consists of a set of oil cylinders under the workbench, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relations with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.
