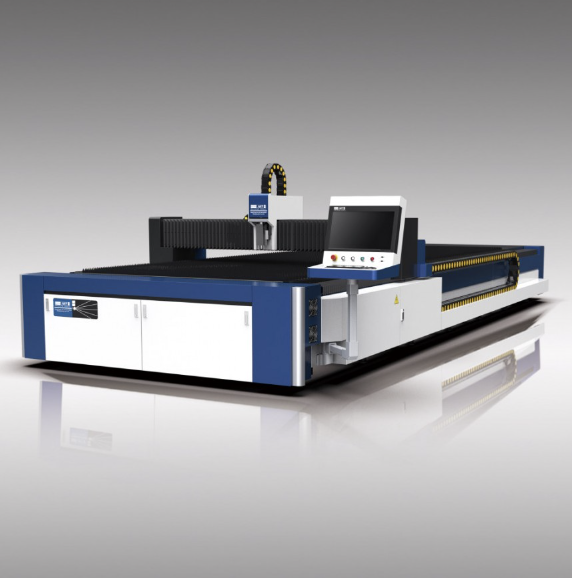

CNC FIBER LASER CUTTING MACHINE 2000W

View more details here CNC FIBER LASER CUTTING MACHINE 2000W 2040 WORKING TABLE

New $50,000.00

I.Application.

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Power 1000W 2000W 3000W

Working table size 3000x1500 mm 4000x2000mm 6000x2000mm etc

II.Features .

1. Adopt industrial heavy duty steel welding structure,Thermal aging treatment,will not deform after long time using.

2. Cast aluminum cross beam,light and stable, ensure fast speed cutting.

3. Configure with Hiwin linear rail,high accuracy grinding type gear and racks,Motovario reducer for all axis, to ensure durable and high precision for long time processing.

4. Adopt professional Raytools auto feeding laser cutting head, release your hands.

5. Professional Cypcut control system, can design ant graphic and letters as you like, operating simple, flexible and easy.

6. Single swich box,distinguish strong and weak electricity, avoid disturb,easy maintenance.

7. Partition dust removal system,clean enough. and beautiful cutting edge.

II.Advantages .

1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.

2. Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.

3. Easy Operation: Fiber Line transmission, no adjustment of optical path.

4. Super-flexible optical effect: small volume, compact structure, easy to flexible manufacturing requirements .

5. Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.

6. High cutting speed: 2-3 times faster than YAG and CO2 laser .

7. High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .

8. High efficiency for photoelectric conversion: Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment .

IV.Major Components

A.Laser Source

Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion,efficiency, good beam quality and low maintenance cost, (The IPG Laser source is optional)

B. frame

heavy duty, steel welded and we have the aging vibration process, annealed process. So the machine will not get deformed for long time use.

Here is the process of how we make our machine frame:

Using the thick steel pipe to weld the machine frame→ Annealing process→ Rough machining→ Vibratory Stress Relief → Fine machining

C.CYPCUT Control System

The best control system in fiber laser machine industry,Functional possibility:

1. Supports three levels of perforation, segmentation or progressive combination

2. Support communication control of most mainstream lasers in the market

3. Supports basic processes such as flying cutting, leapfrog, compensation, threading, micro-connection, pre-perforation, film cutting

4. Supports capacitor patrol edge, photoelectric, electric focusing, double table, automatic cutting tube cutting, power-off memory and other advanced functions

5. Advanced technology such as cooling point, sharp corner cutting, release angle, etc.

D.Cooling system

When laser head cut matels,there will produce some hot energy in laser head and laser source, It is to cool this two parts.

The function of the water cooler is to reduce the temperature of the laser generator and prevent the laser from being burned out. We only use brand-name water coolers with reliable quality.

F.servo motor

Japan Fuji servo motor is top brand in all over the world. Fuji servo motor is installed on XYZ axis.

The big powerful servo motor on Y axis, makes the machine cutting at high speed, the Max. speed can be 80m/min. Moreover, the Juji servo motor is famous for the high precision and stable performance.

G.Oil Lubrication System

This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail,ball screw and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.
