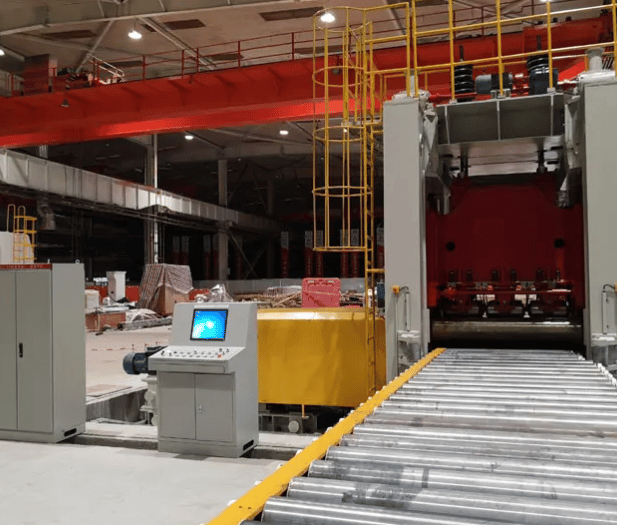

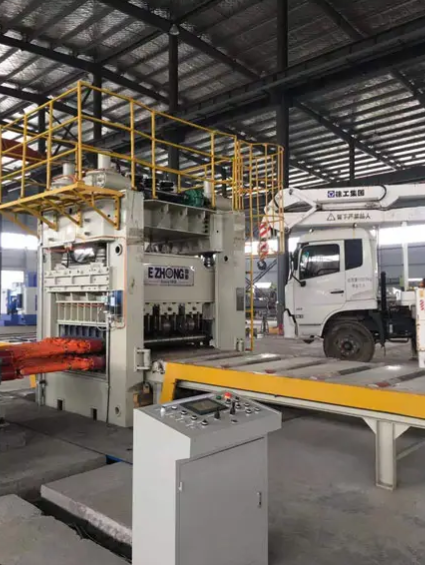

EZHONG EZW43B-10x3000 13-Roll Plate Levelling Machine – Precision Levelling for Thin Plate

The EZHONG EZW43B-10x3000 is a thirteen-roll precision levelling machine for thin plate up to 10 mm thick and 3,000 mm wide. With more rolls, closer roll spacing and a high roll diameter-to-pitch ratio, it achieves a flatness of 1.0 mm/m², tighter than EZHONG's heavier 7 and 9-roll machines. EZHONG's patented individual roll drive, a rigid closed frame and Siemens S7 PLC control make it a strong choice for construction machinery manufacturers, fabricators and service centres who need consistently flat, stress-free thin plate.

How It Levels

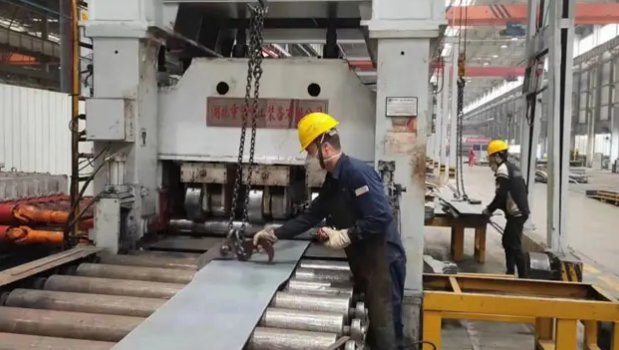

• The plate goes through a series of alternating bends as it passes between the upper and lower rolls
• At the second roll, around 60% of the plate thickness is bent into the plastic range
• Each following roll bends the plate a little less, until the final bend is purely elastic and the plate leaves flat
• This linearly decreasing reduction follows the natural behaviour of steel plate, giving high accuracy with less total deformation, lower levelling force and lower power use

Key Features

• Levels plate up to 10 mm thick and 3,000 mm wide
• Flatness accuracy of 1.0 mm/m²
• Levelling speed of 6.9 m/min

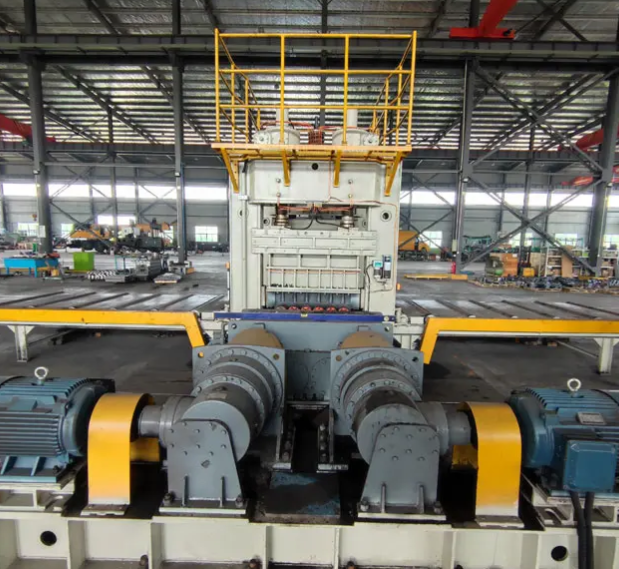

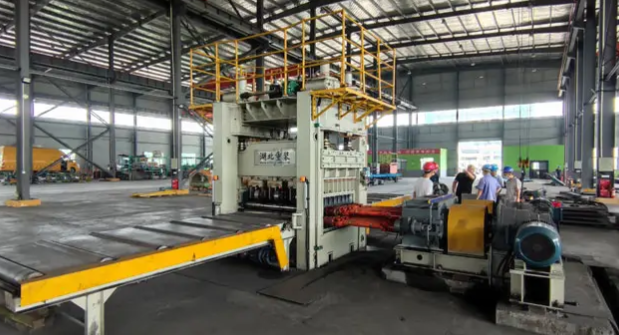

• Patented individual roll drive, eliminating interference and negative torque between rolls, extending roll life and protecting the plate surface

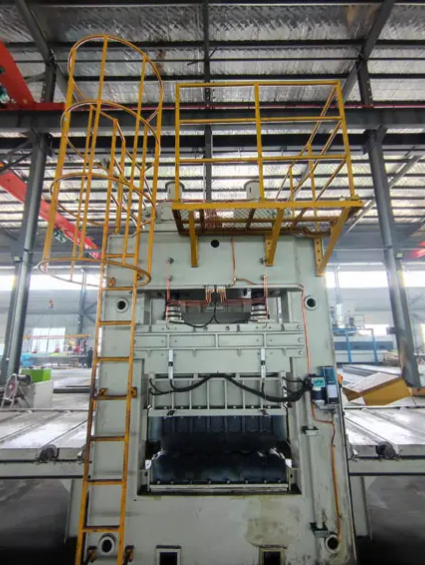

• Closed frame keeps levelling forces internal, so the machine can run at full load without a special lowered foundation
• Combined reduction and tilt mechanism driven by two matched YEJ brake motors, for accurate automatic positioning and fast tilt adjustment
• Extra lifting height on the moving beam for easy roll changes and maintenance
• Rolling-mill-grade bearings on all work roll journals, with a service life of 5–10 years and low friction for better grip on thin plate
• Digital display of upper roll stroke to ±0.1 mm
• Centralised electric double-line lubrication for work rolls, back-up roll bearings, worm gearboxes and screws
• Single-operator use
• Built to EC safety standards with CE certification

Work Roll Quality

• Roll material: 60CrMoV alloy steel, to China's JB/T 3164-2007 standard for roller plate levellers
• Quenched and tempered to HBW 286–321, then surface hardened to HRC 56–63 (HS 85–95)
• Hardened layer depth of 3–5 mm (rolls up to 200 mm diameter) or 6–10 mm (rolls over 200 mm)
• Ground to h6 tolerance with Ra 0.8 μm surface finish
• Manufacturing route: forging, normalising, rough turning, quenching and tempering, finish turning, surface hardening, fine grinding
• Each roll inspected twice, with material, heat treatment and flaw inspection reports supplied

Control and Safety

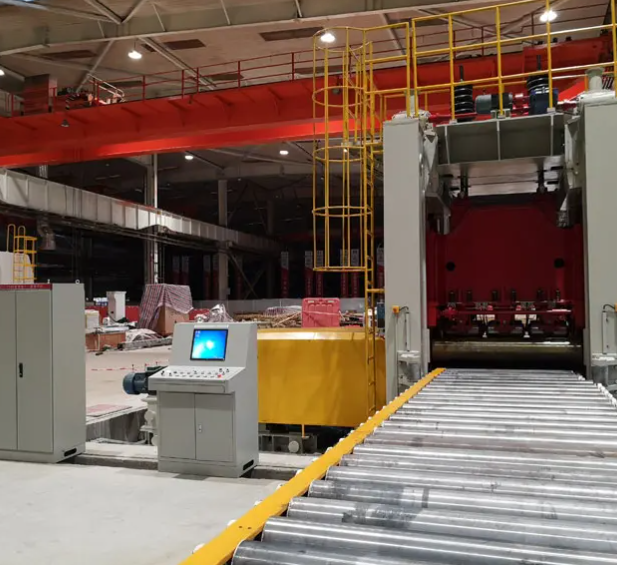

• Siemens S7 PLC control
• Entry and exit reductions set from plate thickness, width, material and original curvature
• Save, edit and recall process recipes at any time
• Guards over drive shafts and exposed rotating parts
• Photoelectric safety switch at the feed entry

Technical Specifications

• Model: EZW43B-10x3000
• Type: Thirteen-roll plate levelling machine
• Useful width: 3,000 mm
• Maximum thickness: 10 mm
• Maximum yield limit: 360 MPa (standard model)
• Levelling accuracy: 1.0 mm/m²
• Speed: 6.9 m/min
• Work rolls: 60CrMoV, HRC 56–63 surface hardness
• Control: Siemens S7 PLC
• Certification: CE

Applications

• Construction machinery: booms, frames and structural plate
• Steel service centres and cut-to-length plate processing
• Shipbuilding and marine thin plate
• Aviation and instrumentation structural parts
• Stainless steel products needing high flatness and surface quality

Which EZHONG Leveller Fits?

• EZW43T-80x3000 (7-roll): Very thick plate up to 80 mm
• EZW43T-40x3000 (9-roll): Medium-heavy plate up to 40 mm and clad plate
• EZW43B-10x3000 (13-roll, this machine): Thin plate up to 10 mm with 1.0 mm/m² flatness
• W43V series: High-strength plate (EZHONG also builds a 13-roll high-strength model, the EZW43V-40x1650)

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE
• Documentation: Roll material, heat treatment and flaw inspection reports supplied

Frequently Asked Questions

• What plate sizes can it level? Up to 10 mm thick and 3,000 mm wide.
• How flat is the finished plate? Levelling accuracy is 1.0 mm/m².
• Why 13 rolls? More rolls with closer spacing give more, smaller bends, which is what thin plate needs for high flatness.
• Does it need a special foundation? No. The closed frame keeps levelling forces within the machine, so it can run at full load without a lowered foundation.
• How long do the rolls and bearings last? Rolls are 60CrMoV, surface hardened to HRC 56–63, and the rolling-mill bearings have a stated service life of 5–10 years.
• Can it level high-strength steel? The standard model is rated to 360 MPa. For high-strength steels, ask EZHONG about higher-rated configurations or the W43V series.
• What should I send for a quotation? Plate grades and yield strength, thickness and width range, required flatness and speed, and your local voltage and frequency.
