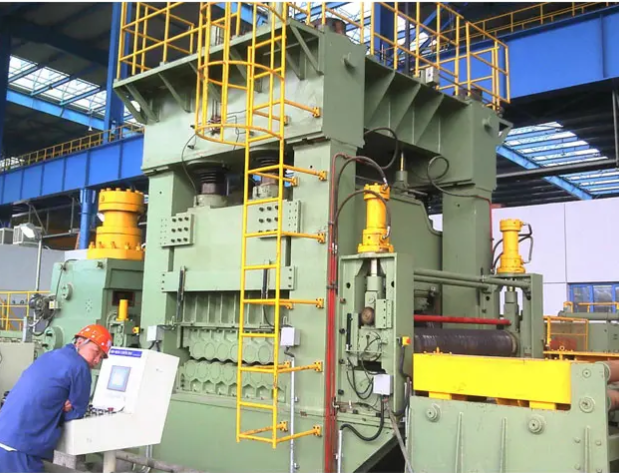

EZHONG EZW43B-8x1500 15-Roll High-Strength Plate Levelling Machine – Precision Levelling up to 1,600 MPa

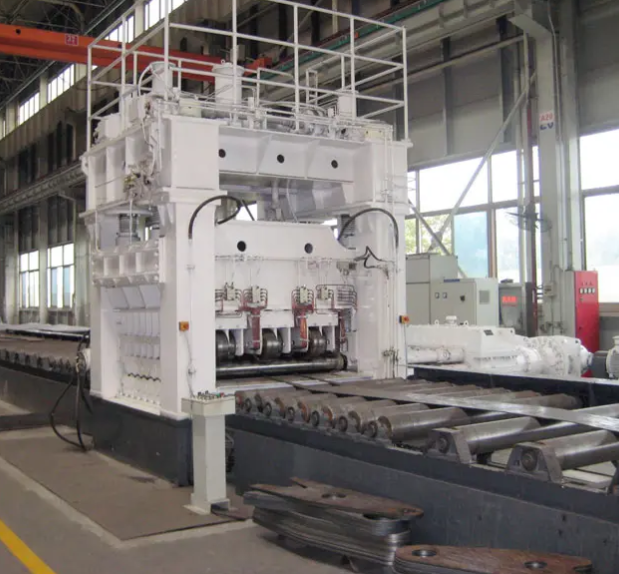

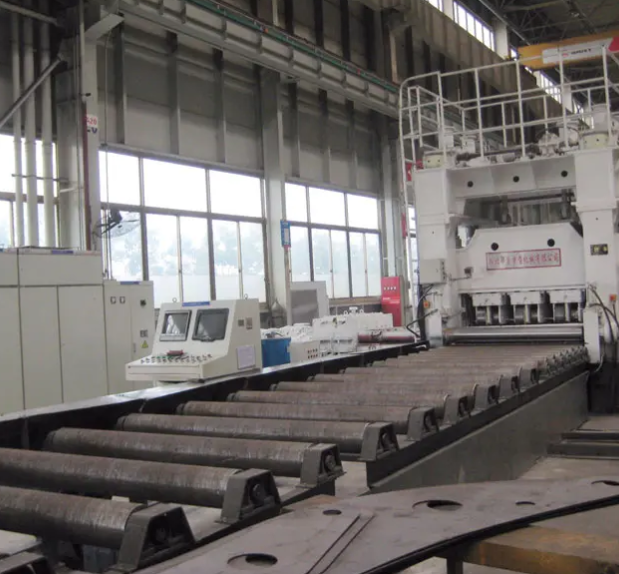

The EZHONG EZW43B-8x1500 is a fifteen-roll CNC precision levelling machine built for high-strength and ultra-high-strength plate, rated for steels with a yield strength up to 1,600 MPa and widths up to 1,500 mm. Two EZHONG patents set it apart: an individual roll drive that removes interference and negative torque between rolls, and a variable roll-count system that lets the machine use between n and n+2 rolls, so one machine can level a wide range from thin to thicker plate. With mechanical-hydraulic reduction, a closed frame and EZHONG's own CNC software, it achieves a flatness of 1.0 mm/m² at 6 m/min.

Two Patented Technologies

• Individual roll drive (Patent No. 99 2 37340.9): Main drives are powered by separate motor-reducers, avoiding mechanical interference and negative torque between plate and rolls. This extends roll life, protects the roll surface, and allows medium and heavy plate to be levelled with a linearly decreasing reduction, lowering levelling force and power use
• Variable roll count (Patent No. 03 1 01384.8): The number of rolls working on the plate can be changed between n+2 and n, widening the thickness range one machine can handle and suiting non-parallel levelling from thin to thick plate

Key Features

• Rated for plate with a yield strength up to 1,600 MPa
• 1,500 mm useful width
• Flatness accuracy of 1.0 mm/m²
• Levelling speed of 6 m/min
• Combined mechanical and hydraulic reduction system, allowing reduction to be adjusted at any time with precise control and high efficiency
• Integral closed frame with optimised ribbing for high overall rigidity
• EZHONG's own CNC software (software copyright held by EZHONG), automatically calculating reduction from plate thickness
• 10-inch high-precision touch screen with PLC control for entering, editing and storing process parameters
• Automatic roll gap setting from plate scanning, with recipe storage by thickness, width and strength
• Self-aligning bearings and efficient drive allow a smaller main motor, saving energy
• Segmented, modular structure: bearings, seals, back-up rolls and work rolls are easy to replace
• Digital display of upper roll stroke to ±0.1 mm
• Single-operator use
• Built to EC safety standards with CE certification

Work Roll Quality

• 60CrMoV alloy steel rolls to JB/T 3164-2007
• Quenched and tempered to HBW 286–321, surface hardened to HRC 56–63
• Hardened depth of 3–5 mm (rolls up to 200 mm diameter) or 6–10 mm (over 200 mm)
• Ground to h6 tolerance, Ra 0.8 μm finish
• Rolling-mill-grade bearings on all work roll journals, with a stated 5–10 year service life
• Each roll inspected twice, with material, heat treatment and flaw inspection reports supplied

Technical Specifications

• Model: EZW43B-8x1500
• Type: Fifteen-roll CNC precision plate levelling machine
• Useful width: 1,500 mm
• Maximum yield limit: 1,600 MPa
• Maximum thickness: see note below (listed as 17 mm; model number suggests 8 mm)
• Levelling accuracy: 1.0 mm/m²
• Speed: 6 m/min
• Work rolls: 60CrMoV, HRC 56–63
• Control: EZHONG CNC software, PLC, 10-inch touch screen
• Certification: CE

Applications

• Ultra-high-strength and wear-resistant plate for construction and mining machinery
• Cut-to-length lines levelling cold- and hot-rolled plate before blanking
• Rolling stock and railway vehicle manufacturing
• Shipbuilding, boilers and bridges
• Steel structure fabrication
• Metallurgy, building materials, chemical, power and light industry

Which EZHONG Leveller Fits?

• EZW43T-80x3000 (7-roll): Very thick plate up to 80 mm
• EZW43T-40x3000 (9-roll): Medium-heavy and clad plate up to 40 mm
• EZW43B-10x3000 (13-roll): Thin plate up to 10 mm, 3 m wide
• EZW43B-8x1500 (15-roll, this machine): High-strength plate up to 1,600 MPa

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE
• Patents: 99 2 37340.9 (individual roll drive); 03 1 01384.8 (variable roll count)
• Reference: EZHONG reports 15-roll levellers for 1,200 MPa plate in steel mill service

Frequently Asked Questions

• What steel strengths can it level? Plate with a yield strength up to 1,600 MPa, including ultra-high-strength and wear-resistant grades.
• What is the variable roll count? EZHONG's patented system changes the number of rolls working on the plate (between n and n+2), so one machine covers a wider thickness range.
• How flat is the finished plate? Levelling accuracy is 1.0 mm/m².
• Is it easy to maintain? Yes. The modular design makes bearings, seals, back-up rolls and work rolls straightforward to replace.
• Who wrote the control software? EZHONG developed and holds the copyright for the CNC software, which calculates reduction automatically from plate thickness.
• What should I send for a quotation? Plate grades and yield strength, thickness and width range, required flatness and throughput, and your local voltage and frequency.
