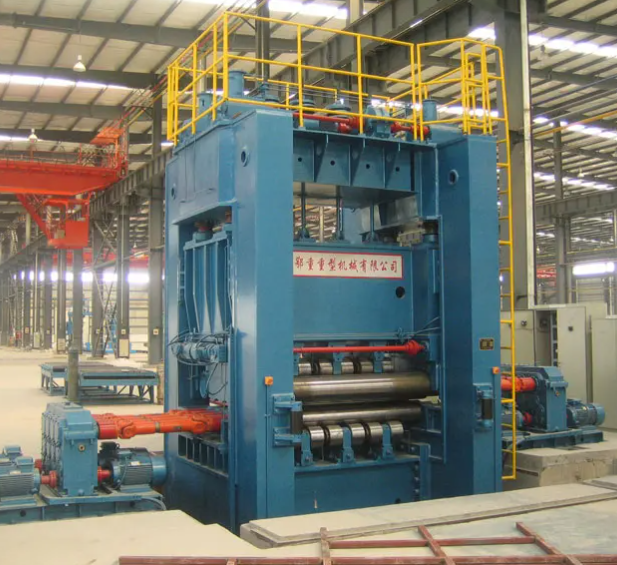

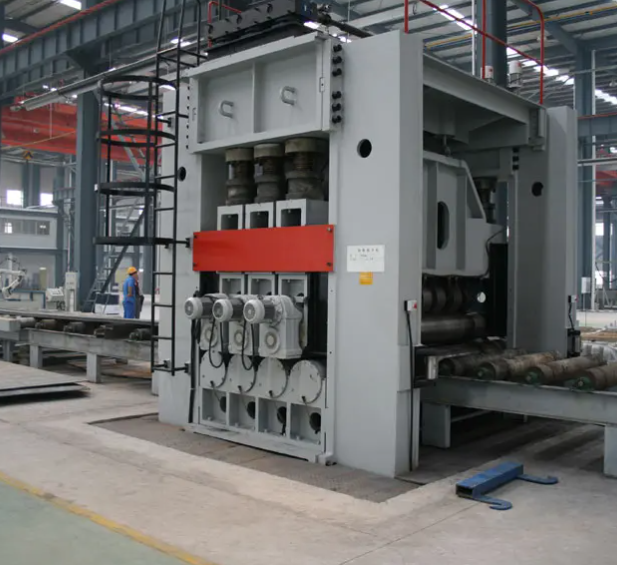

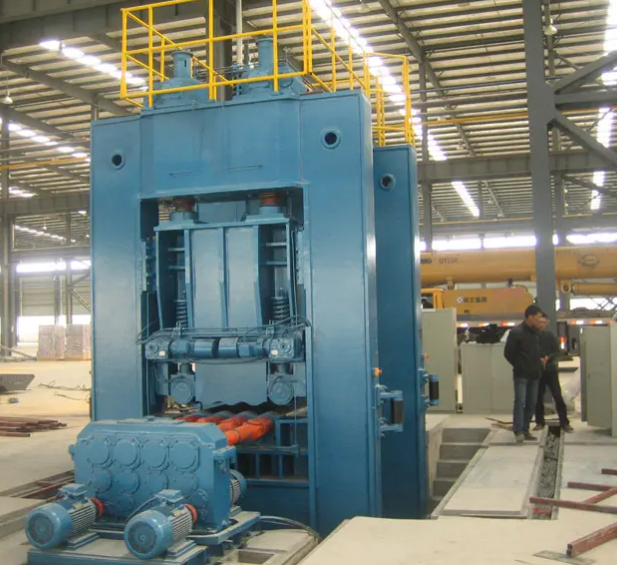

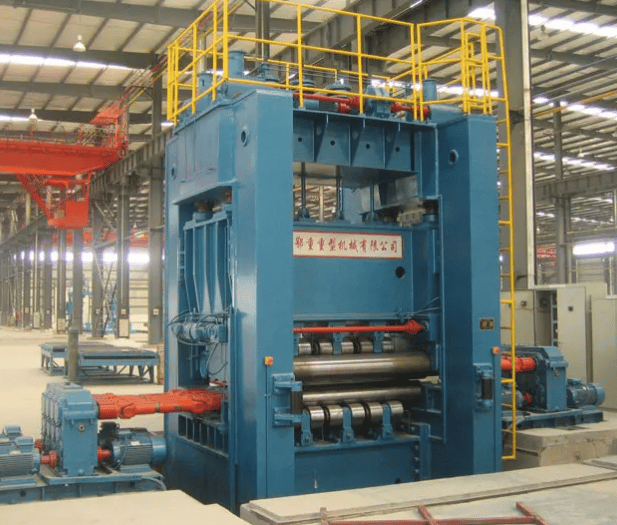

EZHONG EZW43T-40x3000 9-Roll Plate Levelling Machine – Precision Levelling for Steel and Clad Plate

The EZHONG EZW43T-40x3000 is a nine-roll plate levelling machine for medium and heavy plate up to 40 mm thick and 3,000 mm wide, with particular strength in clad (composite) plate. Clad plate, such as stainless steel bonded to carbon steel, combines the corrosion and wear resistance of the cladding with the strength and weldability of the base steel, but it's prone to stress concentration and large distortion during manufacture. EZHONG's patented individual roll drive and adjustable side rolls address exactly that, levelling the plate with less total deformation and protecting its surface. The machine achieves a flatness of 1.0–1.5 mm/m² at up to 5 m/min.

Why Individual Roll Drive Matters

• On conventional levellers, rolls driven together can fight each other, creating mechanical interference and negative torque
• With each roll driven separately, that interference is eliminated, extending roll life and protecting the plate surface, which is critical for clad and stainless plate
• Individual drive allows medium and heavy plate to be levelled with a linearly decreasing reduction, bending the plate a little less at each roll
• Compared with large, uniform bending, this reduces total deformation of the material, lowering levelling force, power consumption and energy use

Key Features

• Levels plate up to 40 mm thick and 3,000 mm wide
• Suitable for carbon steel, stainless steel and clad (composite) plate
• Patented individual roll drive with adjustable side rolls
• Flatness accuracy of 1.0–1.5 mm/m²
• Variable speed from 0 to 5 m/min
• Automatic roll gap setting: a scanning unit measures the plate before entry, and the system calculates and sets the opening
• Recipe storage: save, recall and edit parameters by plate thickness, width and strength, with power-off memory

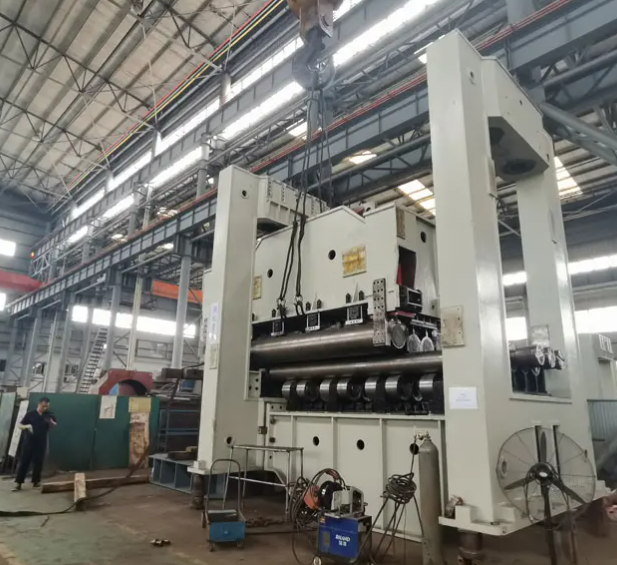

• Integral closed frame with large-radius corner transitions for high rigidity and strength

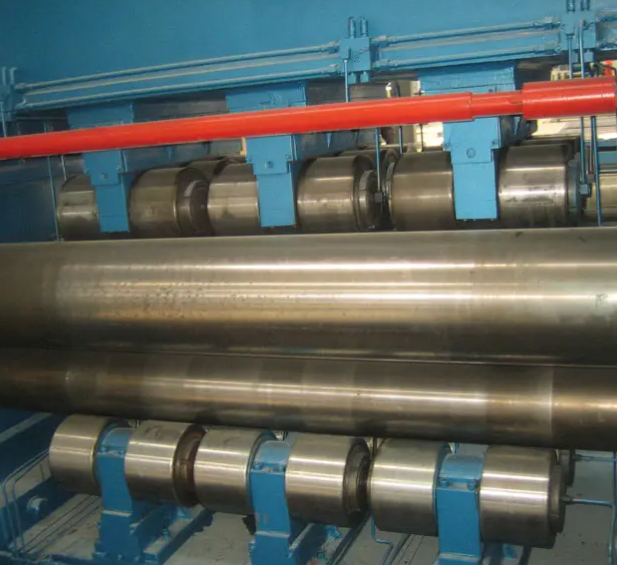

• Work rolls made from cold-mill leveller roll steel, quenched and tempered, with surface-hardened roll bodies
• Rolling-mill-grade bearings on work rolls and guide rolls for shock and vibration resistance
• Centralised electric lubrication for all bearings, worm gearboxes and screws
• Designed in SolidWorks 3D
• PLC, touch screen and push-button control
• Single-operator use
• Built to EC safety standards with CE certification

Safety

• Electrical interlocks and travel limits on all moving parts
• Emergency stop buttons on all four frame columns and the electrical cabinet
• Photoelectric safety sensors at entry and exit stop the machine immediately if an operator reaches in, and prevent it from restarting

Technical Specifications

• Model: EZW43T-40x3000
• Type: Nine-roll plate levelling machine
• Useful width: 3,000 mm
• Maximum thickness: 40 mm
• Maximum yield limit: 345 MPa
• Levelling accuracy: 1.0–1.5 mm/m²
• Speed: 0–5 m/min
• Drive: Patented individual roll drive
• Control: PLC with touch screen and recipe memory
• Certification: CE

Applications

• Clad and composite plate manufacturing (stainless/carbon, other bimetal plate)
• Pressure vessel and petrochemical plate preparation
• Shipbuilding and marine structures
• Metallurgy and steel service centres
• Stainless steel products requiring high flatness and good surface finish
• Aviation and instrumentation structural parts

Which EZHONG Leveller Fits?

• EZW43T-80x3000 (7-roll): Very thick plate up to 80 mm
• EZW43T-40x3000 (9-roll, this machine): Medium-heavy plate up to 40 mm, and clad plate
• 11 to 17-roll machines: Thinner and higher-strength plate, where more rolls give finer flatness

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE
• Reference: EZHONG's site reports 9-roll leveller customers in Azerbaijan

Frequently Asked Questions

• What plate sizes can it level? Up to 40 mm thick and 3,000 mm wide.
• Can it level clad or composite plate? Yes. Individual roll drive and adjustable side rolls are designed to handle the stress concentration and distortion typical of clad plate.
• What is individual roll drive? Each roll is driven separately, which avoids rolls working against each other, extends roll life and protects the plate surface.
• How flat is the finished plate? Levelling accuracy is 1.0–1.5 mm/m².
• Is it safe to operate? Photoelectric sensors at entry and exit stop the machine if a hand or body enters, alongside interlocks, travel limits and emergency stops on all four columns.
• What should I send for a quotation? Plate type (including clad combinations), grades and yield strength, thickness and width range, required flatness, and your local voltage and frequency.
