EZHONG EZW43T-80x3000 7-Roll Plate Levelling Machine – Automated Levelling for Plate up to 80 mm

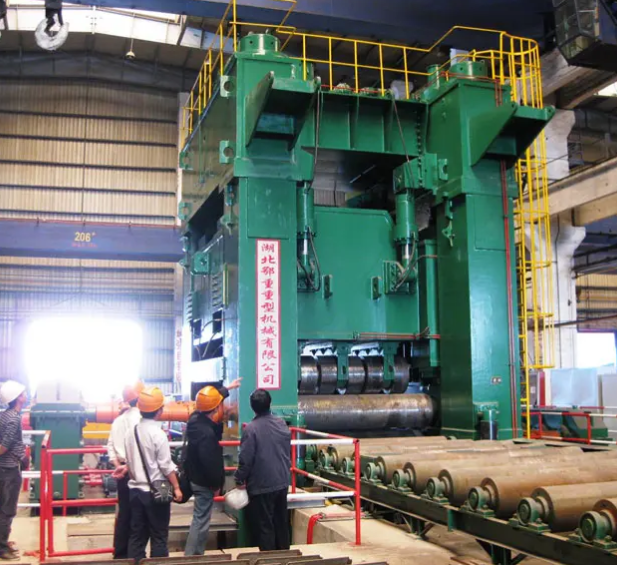

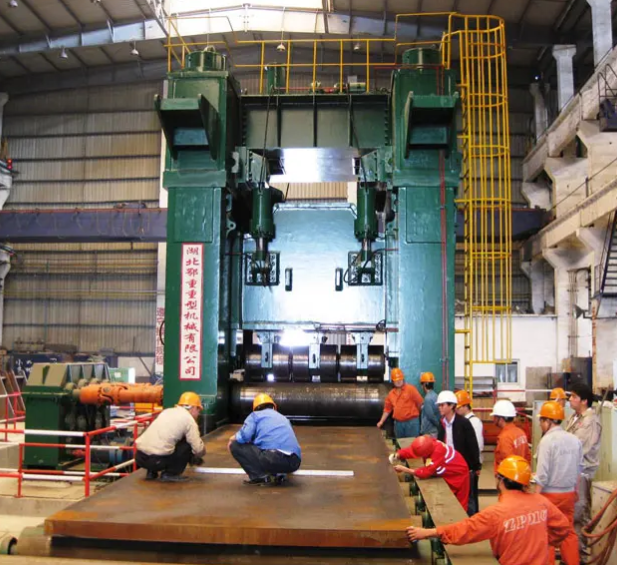

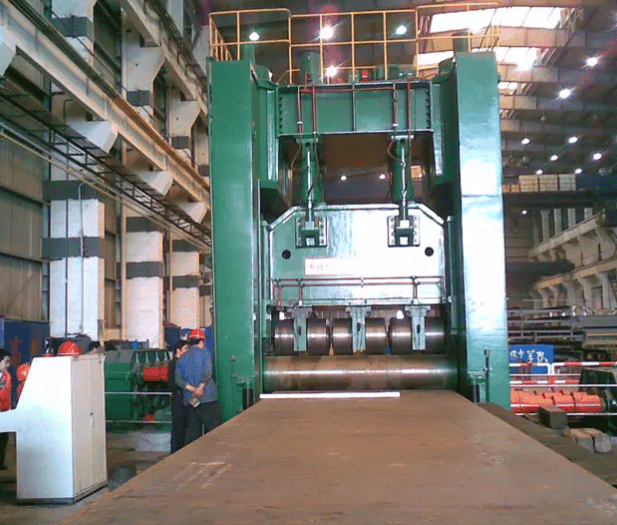

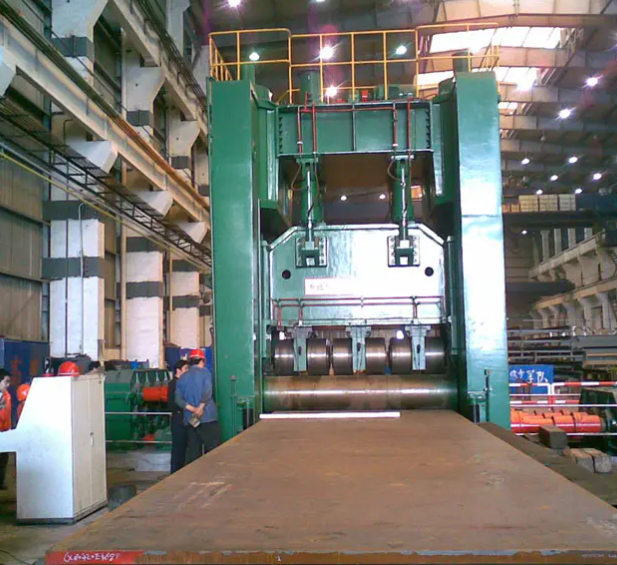

The EZHONG EZW43T-80x3000 is a heavy-duty seven-roll plate levelling machine for flattening and stress-relieving plate up to 80 mm thick and 3,000 mm wide. As the plate passes through a series of alternating bends, a PLC precisely controls how far each roll presses down, removing internal stresses and correcting uneven flatness across the whole plate. The operator enters plate thickness, width and material strength (or recalls a saved recipe), and the machine calculates and sets the roll gaps automatically. It achieves a flatness of 1.0–1.5 mm/m² at up to 6 m/min, run by a single operator.

How It Works

• The plate passes between upper and lower rolls and is bent back and forth in decreasing amounts
• Alternating bending equalises internal stresses so the plate stays flat after cutting
• The PLC controls the reduction at each roll, correcting areas with different stress levels
• Entry and exit roll gaps are set automatically from plate thickness, width and strength, with manual fine adjustment available

Key Features

• Levels plate up to 80 mm thick and 3,000 mm wide
• Flatness accuracy of 1.0–1.5 mm/m²
• Levelling speed up to 6 m/min
• Automatic roll gap adjustment: a scanning unit measures the plate before entry, and the system calculates and sets the opening
• Recipe storage: save, recall and edit process parameters, with power-off memory
• Misoperation detection and early warning
• Entry and exit cameras feed live video to the main console, so the operator can watch the whole machine without leaving the desk
• Designed in SolidWorks 3D for optimised structure
• Integral welded steel frame for rigidity under heavy loads
• Energy-saving variable roll-number correction, which also extends machine life
• Single-operator use
• Built to EC safety standards with CE certification

Control and Electrical System

• Main console with Advantech industrial PC and Siemens PLC
• Secondary console on the opposite side for simple operations
• PLC, touch screen and push-button control, with all parameters set on the HMI
• Omron micro-relays and Schneider electrical components
• Protection against over-voltage, over-current, overload, short circuit and phase loss
• Interlocks to prevent overloading
• 380 V, 50 Hz power supply

Technical Specifications

• Model: EZW43T-80x3000
• Type: Seven-roll plate levelling machine
• Useful width: 3,000 mm
• Maximum thickness: 80 mm
• Maximum yield limit: 360 MPa
• Levelling accuracy: 1.0–1.5 mm/m²
• Speed: 6 m/min
• Control: Siemens PLC with Advantech industrial PC and touch screen
• Power supply: 380 V, 50 Hz
• Certification: CE

Applications

• Pressure vessels: Flat, stress-relieved plate ahead of cutting and welding
• Shipbuilding and marine equipment: Large, thick plate for hull and structural work
• Heavy machinery and construction equipment: Plate for frames and structural parts
• Petrochemical fabrication: Vessel and tank plate
• Metallurgy and steel service centres: Plate finishing and flattening
• Stainless steel products: Precise flatness for finished parts

Related EZHONG Machines

• W43T levelling machine series
• 9, 11, 13, 15 and 17-roll levelling machines
• EZW43T-80x3000 hot plate leveller

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE
• Support: Installation guidance, PLC training, operating manuals and ongoing technical support

Frequently Asked Questions

• What plate sizes can it level? Up to 80 mm thick and 3,000 mm wide.
• How flat is the finished plate? Levelling accuracy is 1.0–1.5 mm/m².
• Do I need to set the rolls manually? No. Enter plate thickness, width and strength, or recall a saved recipe, and the system sets the roll gaps. Manual correction is available if needed.
• Why use 7 rolls? Seven rolls with large roll spacing suit thick plate, where fewer, stronger rolls are needed to bend the material. Thinner, higher-strength plate generally needs more rolls.
• Can it be customised? Yes. Automation settings, roll gap control and control interfaces can be adapted to your line.
• What should I send for a quotation? Plate grades and yield strength, thickness and width range, required flatness, throughput, and your local voltage and frequency.
