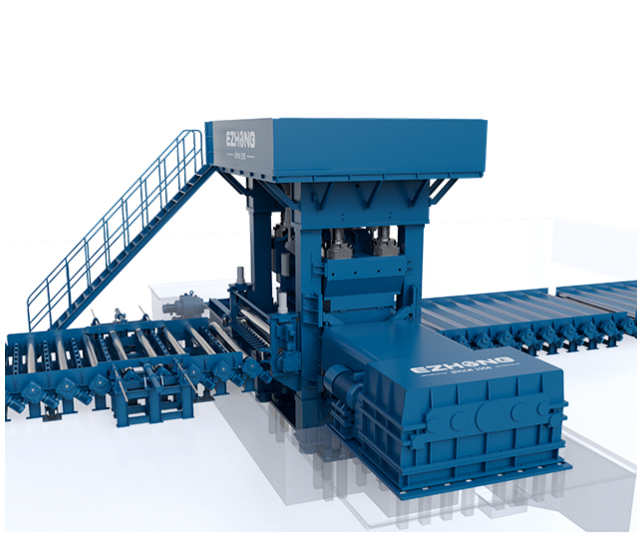

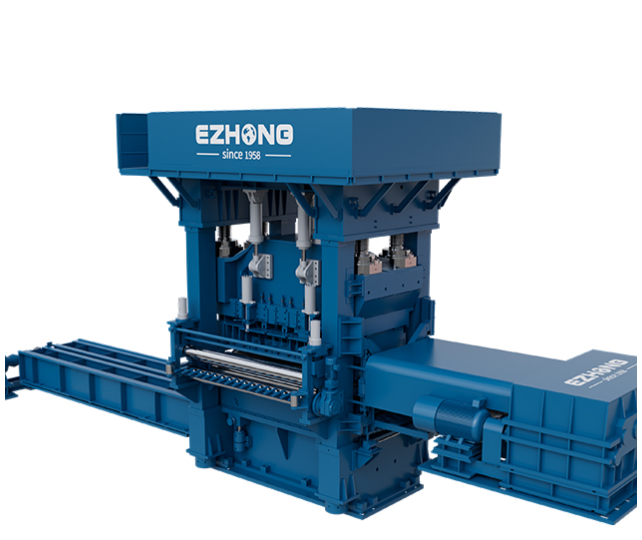

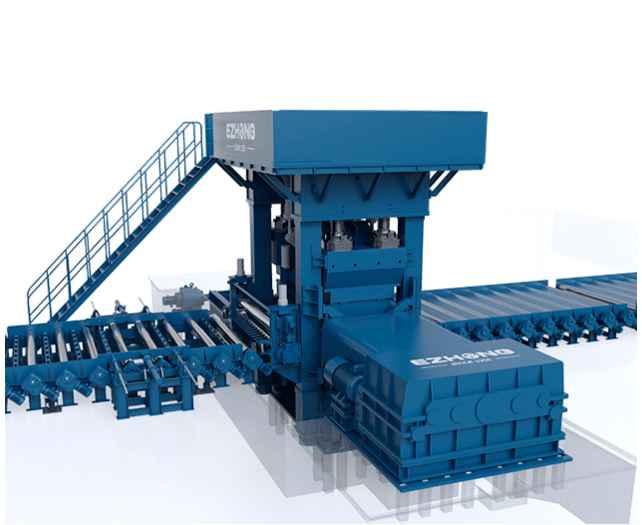

EZHONG EZW43T-80x3000 Hot Plate Leveller – Levelling Heavy Plate After Heat Treatment

The EZHONG EZW43T-80x3000 is a heavy plate leveller for steel mills and plate processors, designed to flatten plate up to 80 mm thick and 3,000 mm wide after heat treatment. Plates that have been quenched and tempered, hot rolled or cooled unevenly develop shape defects such as cross-bow, longitudinal waves and edge or centre waves. Levelling the plate while it's still hot corrects these defects and reduces internal stresses at the same time, producing flat plate ready for cutting and fabrication. The machine levels to a flatness of 1.0–1.5 mm/m² at speeds up to 6 m/min.

What It Corrects

• Cross-bow across the plate width
• Longitudinal waves along the plate length
• Edge waves and centre waves
• Residual internal stresses from uneven heating and cooling

Key Features

• Levels plate up to 80 mm thick and 3,000 mm wide
• Designed for hot plate straight after heat treatment
• Flatness accuracy of 1.0–1.5 mm/m²
• Levelling speed up to 6 m/min
• Suitable for plate with a yield limit up to 360 MPa

Technical Specifications

• Model: EZW43T-80x3000
• Type: Hot plate leveller
• Useful width: 3,000 mm
• Maximum thickness: 80 mm
• Maximum yield limit: 360 MPa
• Levelling accuracy: 1.0–1.5 mm/m²
• Speed: 6 m/min

Applications

• Steel mills producing heat-treated and hot-rolled heavy plate
• Finishing lines after quenching and tempering
• Plate processing and service centres
• Shipbuilding, construction machinery and structural steel plate supply

Related EZHONG Machines

• W43T levelling machine series
• 7-roll plate levelling machine
• EZW43RT-20x1450 11-roll heat straightening machine

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China

Frequently Asked Questions

• Why level plate while it's still hot? Heat treatment and uneven cooling leave plates with waves, bows and internal stresses. Levelling hot corrects the shape and reduces those stresses in one step.
• What plate sizes can it handle? Up to 80 mm thick and 3,000 mm wide.
• How flat is the finished plate? Levelling accuracy is 1.0–1.5 mm/m².
• What steel strength can it level? Plate with a yield limit up to 360 MPa.
• What should I send for a quotation? Plate grades and yield strength, thickness and width range, plate temperature at the leveller, line speed, and your local voltage and frequency.
