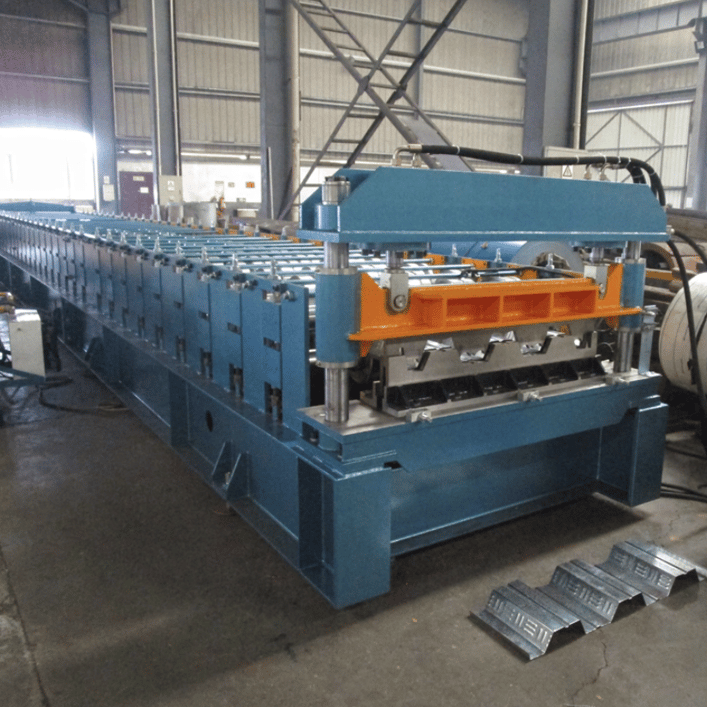

Floor Deck Roll Forming Machine in Saudi Arabia
- Condition
- New
- Supplier
- Roll Forming Machines Saudi Arabia
- Country
- Saudi Arabia
- Category
- Listing ID
- 9784
Request a Quote
To express an interest in this machine please submit the form below.
| Iterm | Specification | |
| Type | Color steel sheet or galvanized steel sheet | |
| Material | Thickness(mm) | 0. 8 -1.2 |
| Yield strength(mpa) | 235 -345 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 15-20m/min | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mov. | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 11*2KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Total power(kw) | 11KW | |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) | |
| Machine`s size | About 16*1.5*1.6m (Depend on final design) | |
| Machine weight | About 16000kgs | |
