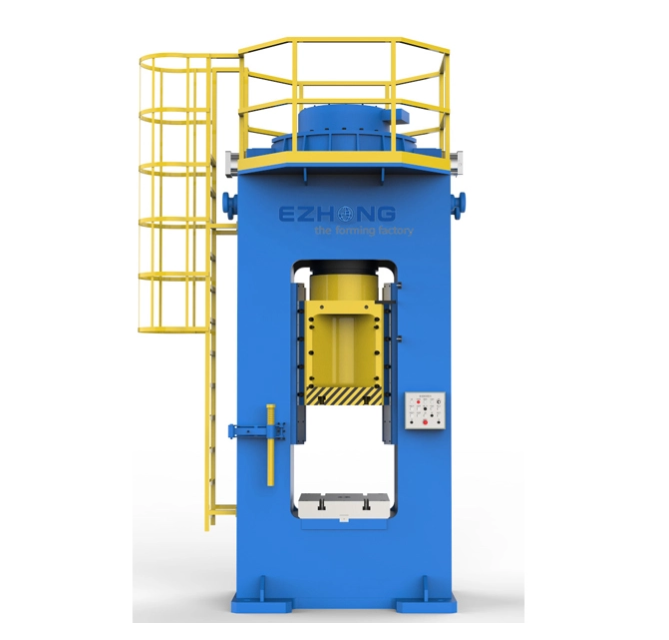

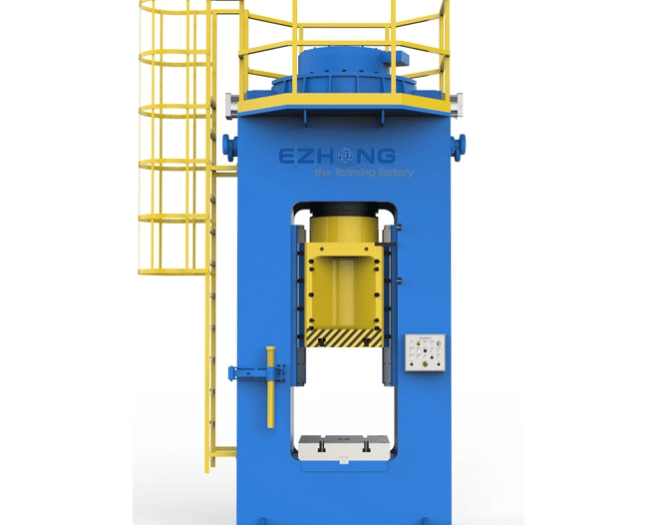

EZHONG J58SZ Servo Direct Drive Screw Press Series – Forging Presses from 1,600 to 40,000 kN

The EZHONG J58SZ series is a range of servo direct-drive screw presses for hot and warm forging, with nominal forces from 1,600 kN to 40,000 kN (roughly 160 to 4,000 tonnes). A permanent-magnet synchronous servo motor drives the screw directly, with no gearbox, belts or friction discs in between, and the screw's rotation is converted into the up-and-down stroke of the ram. Removing the intermediate transmission cuts energy losses, wear parts and maintenance, while closed-loop control gives precise, repeatable blow energy. The presses handle die forging, edge trimming and straightening, backed by EZHONG's decades of experience building forging equipment.

How It Works

• A permanent-magnet synchronous servo motor is coupled directly to the screw
• The motor spins the screw, and the nut and ram convert this into a linear pressing stroke
• There's no gearbox, belt or friction drive between the motor and the screw
• A closed-loop control system meters the blow energy precisely for each stroke

Key Features

• Servo direct drive: no gears, belts or friction discs to wear out
• Transmission efficiency improved by more than 20% compared with conventional drives (per EZHONG)
• Precise, closed-loop control of blow energy for consistent forgings
• Fewer wear parts, with lower failure and maintenance rates
• Lower energy use and significantly reduced noise
• Simple mechanical structure
• Integral welded steel frame for rigidity and stability
• Suitable for die forging, edge trimming and straightening

Available Models

• J58SZ-160: 1,600 kN nominal, 2,500 kN allowable, 300 mm max stroke, 380 mm min die height, 600 × 560 mm table, approx. 1,200 × 1,000 × 3,320 mm overall
• J58SZ-250: 2,500 kN nominal, 4,000 kN allowable, 320 mm max stroke, 380 mm min die height, 600 × 560 mm table, approx. 1,200 × 1,000 × 3,350 mm overall
• J58SZ-315: 3,150 kN nominal, 5,000 kN allowable, 380 mm max stroke, 430 mm min die height, 700 × 640 mm table, approx. 1,500 × 1,100 × 3,650 mm overall
• J58SZ-400: 4,000 kN nominal, 6,300 kN allowable, 400 mm max stroke, 450 mm min die height, 750 × 730 mm table, approx. 1,680 × 1,160 × 3,830 mm overall
• J58SZ-630: 6,300 kN nominal, 10,000 kN allowable, 450 mm max stroke, 540 mm min die height, 820 × 900 mm table, approx. 1,980 × 1,400 × 4,600 mm overall
• J58SZ-1000: 10,000 kN nominal, 16,000 kN allowable, 500 mm max stroke, 550 mm min die height, 920 × 1,050 mm table, approx. 2,300 × 1,600 × 5,600 mm overall
• J58SZ-1600: 16,000 kN nominal, 25,000 kN allowable, 600 mm max stroke, 740 mm min die height, 1,000 × 1,280 mm table, approx. 2,300 × 2,000 × 6,950 mm overall
• J58SZ-2500: 25,000 kN nominal, 40,000 kN allowable, 700 mm max stroke, 800 mm min die height, 1,200 × 1,400 mm table, approx. 3,000 × 2,400 × 8,100 mm overall
• J58SZ-4000: 40,000 kN nominal, 60,000 kN allowable, 750 mm max stroke, 1,160 mm min die height, 1,600 × 2,000 mm table, approx. 3,700 × 2,500 × 8,500 mm overall

Series Overview

• Nominal force: 1,600 – 40,000 kN
• Blow energy: approx. 5 – 1,000 kJ across the range, with standard (M) and high-energy (H) versions of most models
• Maximum strokes per minute: approx. 11 – 31, depending on model
• Buffer plate thickness: 115 – 300 mm
• Drive: Permanent-magnet synchronous servo motor, direct drive
• Control: Closed-loop energy control

Applications

• Die forging of mechanical parts
• Automotive forgings: crankshafts, connecting rods, gears, axle parts
• Railway vehicle components
• Aerospace forgings
• Hand tools and hardware
• Metallurgy and refractory products
• Edge trimming and straightening of forged parts

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE and ISO 9001 (per EZHONG)

Frequently Asked Questions

• What is a servo direct-drive screw press? A screw press where a servo motor turns the screw directly, with no gearbox, belt or friction drive. It gives precise energy control with fewer wear parts than friction or clutch-type screw presses.
• What force range is available? Nine models from 1,600 kN to 40,000 kN nominal force.
• What processes can it do? Die forging, edge trimming and straightening.
• How much energy can it save? EZHONG states transmission efficiency is improved by more than 20% compared with conventional drive systems.
• Is there an M and H version? Most models come in standard (M) and high-energy (H) versions. Ask EZHONG for the energy rating of the version you need.
• What should I send for a quotation? Part material, weight and dimensions, forging process (die forging, trimming, straightening), required force and blow energy, production rate, and your local voltage and frequency.
