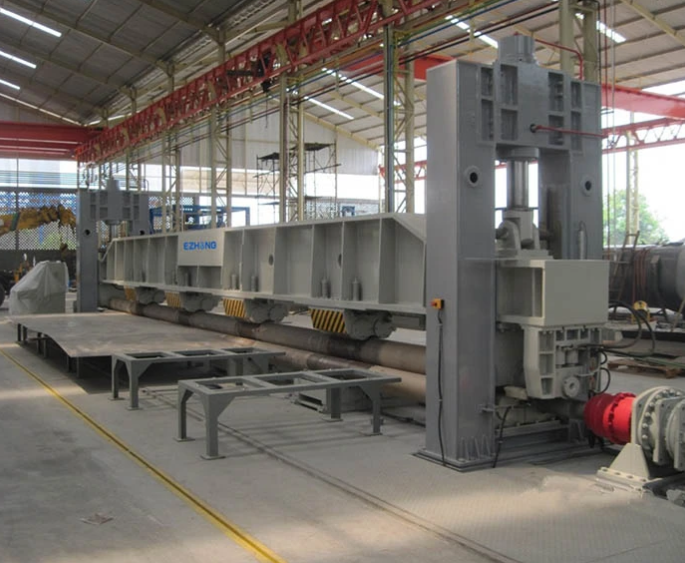

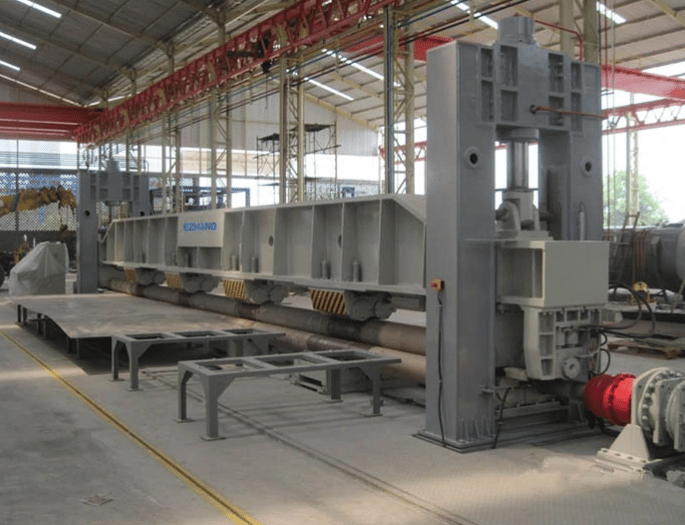

EZHONG W11NC Tank Plate Rolling Machine Series – Extra-Wide Rolling for Tanker and Trailer Shells

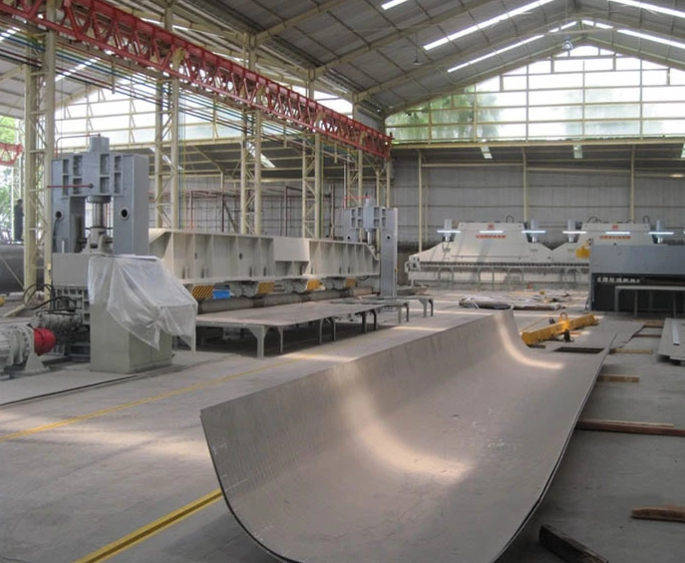

The EZHONG W11NC series is built for manufacturers of road tankers, trailer tanks and other long, thin-walled shells. The machines roll plate from 5 to 16 mm thick and from 6,000 to 9,500 mm wide, so a full-length tank shell can be formed from a single plate with no circumferential seams. They handle the round, oval and other cross-sections used on trailer tanks. A crowned upper roll, adjustable support rollers and laser-guided deflection compensation keep long plates straight along their full length, while a gravity fast-fill hydraulic design cuts cycle times and energy use.

How It Works

• The upper roll moves vertically under hydraulic power and horizontally through a worm gearbox and screw-nut mechanism
• The lower rolls are driven and provide rolling torque
• Adjustable support rollers sit under the lower rolls to reduce deflection
• The upper roll is crowned (drum-shaped) to improve the straightness of the finished shell
• Suitable for tank shells with a range of cross-sectional shapes

Key Features

• Laser-guided deflection compensation: Laser displacement sensors on a reference frame measure lower roll and beam deflection in real time. The control system adjusts compensation units between the beam and work roll, keeping the workpiece straight across its full length
• Upper roll anti-vibration system: EZHONG's own design stops long upper rolls from bouncing and vibrating during fast raising and lowering
• Fast, energy-saving hydraulics: The gantry frame carries the load, with an oil tank built into the top of the frame above the cylinders. This stiffens the upper beam and lets the beam and upper roll drop under their own weight to open the fill valve, reaching descent speeds of 3,000 mm/min with lower hydraulic energy use
• Multi-function: Rolls arcs, cones and other curved surfaces. With dies, it can also fold grooves, form profiled and V-shaped plates, or level plate
• Solid, high-strength rolls with long service life and low deflection
• Transmission gears in forged high-carbon steel
• Integral welded steel plate frame
• Overload protection
• Three digital readouts show work roll positions
• Independent mobile console for single-operator use

Available Models

• W11NC-5×7000: 5 mm × 7,000 mm, 440 mm upper roll, 11 kW
• W11NC-6×9500: 6 mm × 9,500 mm, 500 mm upper roll, 15 kW
• W11NC-8×6000: 8 mm × 6,000 mm, 420 mm upper roll, 15 kW
• W11NC-8×7000: 8 mm × 7,000 mm, 450 mm upper roll, 15 kW
• W11NC-8×8000: 8 mm × 8,000 mm, 470 mm upper roll, 15 kW
• W11NC-8×9500: 8 mm × 9,500 mm, 510 mm upper roll, 15 kW
• W11NC-10×6000: 10 mm × 6,000 mm, 440 mm upper roll, 15 kW
• W11NC-10×9000: 10 mm × 9,000 mm, 470 mm upper roll, 15 kW
• W11NC-12×6000: 12 mm × 6,000 mm, 460 mm upper roll, 15 kW
• W11NC-12×9000: 12 mm × 9,000 mm, 530 mm upper roll, 22 kW
• W11NC-16×6000: 16 mm × 6,000 mm, 500 mm upper roll, 22 kW

Applications

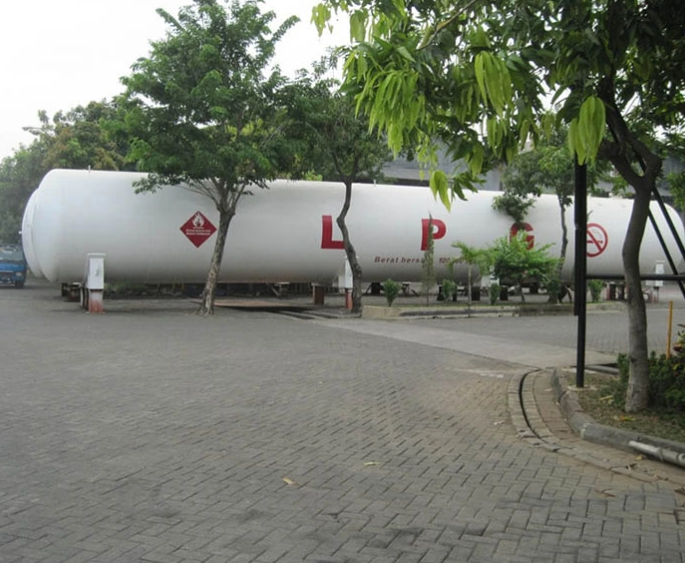

• Road tankers for fuel, chemicals, food and water
• Trailer tanks with round, oval and other cross-sections
• Bulk cement and powder tankers
• Rail tank car shells
• Long, thin-walled cylinders and ducting

Related EZHONG Machines

• Ship plate bending machine series
• XW12X-60x4200 wide four-roll plate rolling machine
• XW12X-20x2000 compact four-roll plate rolling machine

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Reference: EZHONG has also built a W12-12×8000 four-roll machine for a fully automated tank car production line

Frequently Asked Questions

• What plate sizes can the series handle? From 5 mm × 7,000 mm up to 16 mm × 6,000 mm, with widths up to 9,500 mm.
• Why use such a wide machine? A full-length tanker shell can be rolled from one plate, avoiding circumferential welds.
• Can it roll oval or non-circular tank shapes? Yes. It's designed for tanks with a range of cross-sectional shapes.
• How does it keep long plates straight? A crowned upper roll, adjustable support rollers and laser-guided deflection compensation work together along the full roll length.
• Can it do more than rolling? Yes. It rolls arcs and cones, and with dies it can fold grooves, form profiled plates and level plate.
• What should I send for a quotation? Plate material and grade, thickness and length, your tank cross-section and dimensions, and your local voltage and frequency.
