EZHONG W12-120x4000 CNC Four-Roll Plate Rolling Machine – Siemens CNC, Hot and Cold Rolling

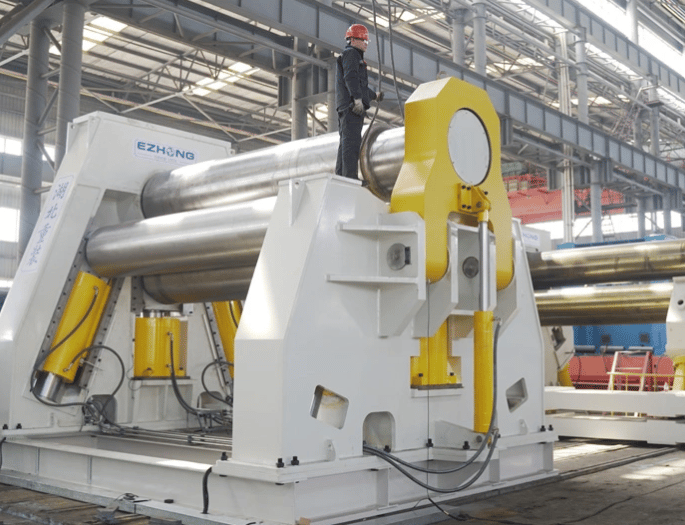

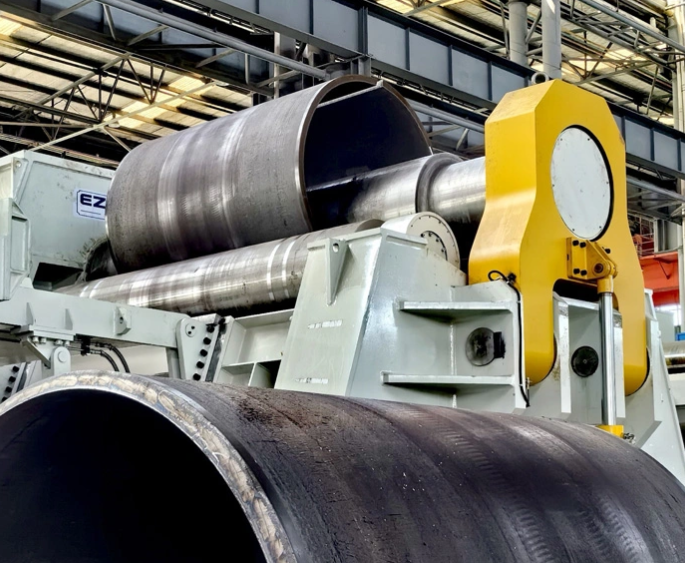

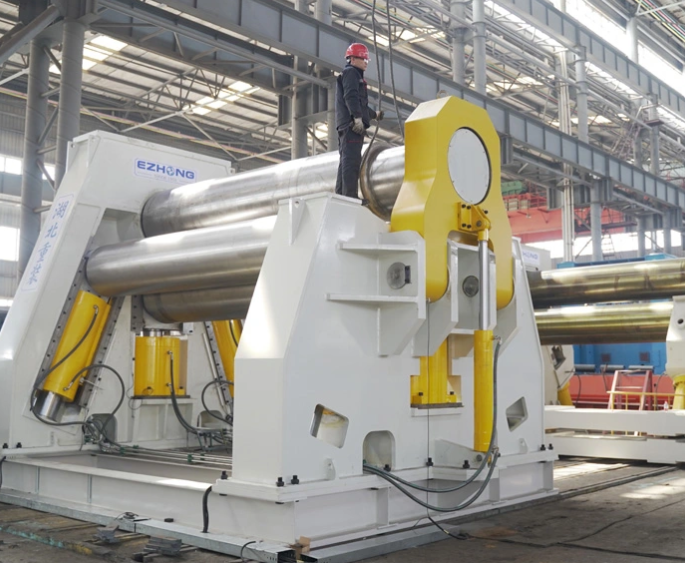

The EZHONG W12-120x4000 is a full hydraulic CNC four-roll plate rolling machine for heavy plate up to 120 mm thick and 4,000 mm wide. It pre-bends plate ends up to 100 mm and rolls the complete shell in a single feed without turning the plate, leaving the shortest possible straight edge thanks to EZHONG's double-roll full-drive design. Controlled by a Siemens CNC system and capable of both cold and hot rolling, it's built for high-accuracy, high-productivity work in wind tower, pressure vessel, boiler and shipbuilding fabrication.

Why Choose a Four-Roll Machine?

• The plate is clamped between the top and bottom rolls throughout rolling, so it can't slip
• The two side rolls do the bending, allowing both ends to be pre-bent without removing or turning the plate
• Clamping close to the plate edge gives shorter flat ends than most three-roll machines
• Fixed plate positioning makes four-roll machines well suited to CNC programming and automation
• Faster cycle times for production work with repeat sizes

Key Features

• Rolls plate up to 120 mm thick and 4,000 mm wide
• Pre-bends plate ends up to 100 mm thick
• Single-feed pre-bending and rolling, with no need to turn the workpiece
• Double-roll full-drive technology brings the plate edge closer to the clamping point for the shortest straight edge
• Simultaneous roll movement with micro positioning for higher productivity and precision

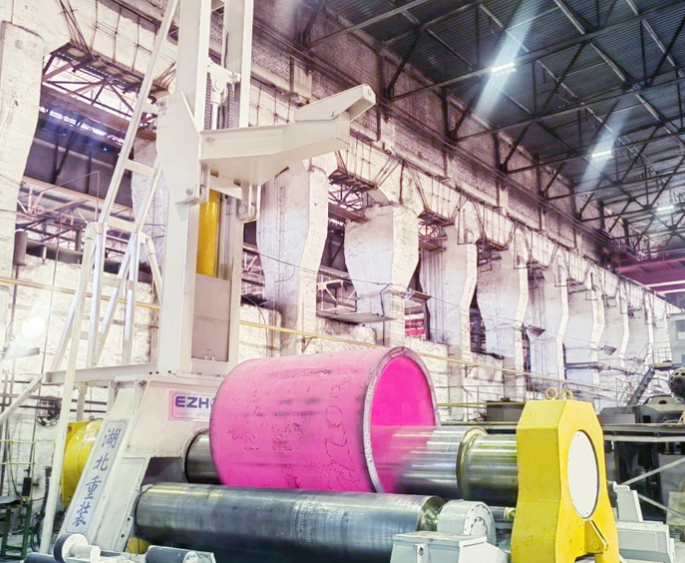

• Suitable for both cold rolling and hot rolling
• Rolls adjust and tilt for cone bending

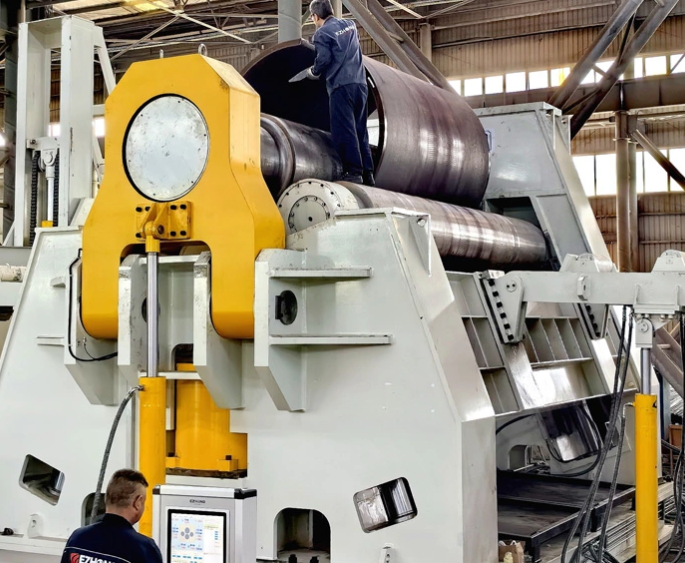

• Siemens CNC system with an independent mobile operating console
• Energy-efficient hydraulic system
• Adjustable centre distance with electro-hydraulic control
• Heavy-duty, over-dimensioned structure for long-term reliability
• Rolls forged from high-quality steel, heat treated and induction hardened
• Strong top and side supports, with automatic feeding tables and centring devices
• Single-operator use

Technical Specifications

• Model: W12-120x4000 (EZW12 series)
• Type: Full hydraulic CNC four-roll plate rolling machine
• Maximum rolling width: 4,000 mm
• Maximum thickness without pre-bending: 120 mm
• Maximum thickness with pre-bending: 100 mm
• Working speed: 3.5 m/min
• Rolling modes: Cold and hot rolling
• Control: Siemens CNC with mobile operating console
• Rolls: Forged steel, heat treated and induction hardened
• Machine dimensions: Approx. 10,000 × 5,157 × 5,170 mm

Applications

• Wind energy: Tower sections and cones
• Boilers: Boiler drums and shells
• Petroleum and chemical: Pressure vessels, tanks and pipelines
• Shipbuilding: Hull sections and curved structural plates
• Metal structures and machinery: Cylindrical shells and heavy fabricated components

Related EZHONG Machines

• XW11S-140x4500 CNC three-roll plate rolling machine
• XW11S-160x3500 full hydraulic three-roll plate rolling machine
• 80x3000mm four-roll plate bending machine

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China

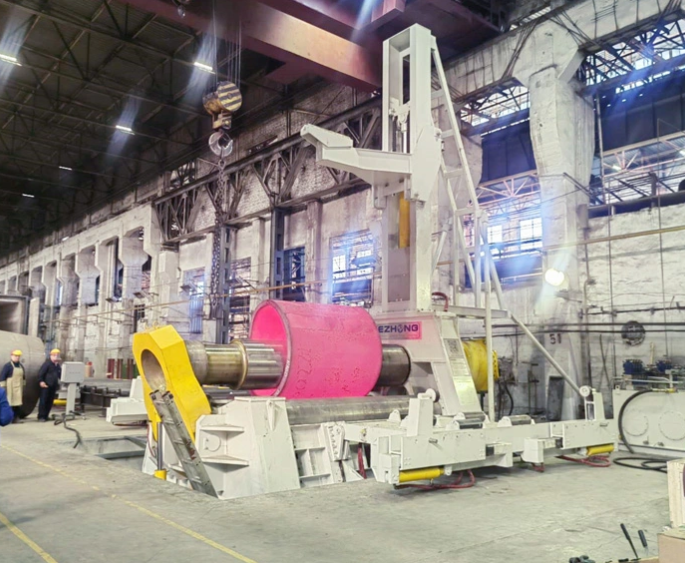

• Reference: EZHONG has supplied a 120×4000 CNC four-roll machine to a machinery company in Eastern Europe

Frequently Asked Questions

• What is the maximum plate size? 120 mm thick and 4,000 mm wide, or 100 mm when pre-bending.
• What's the difference between a 3-roll and a 4-roll machine? A four-roll machine clamps the plate between the top and bottom rolls, so both ends can be pre-bent without turning the plate, straight edges are shorter and the process is easier to automate.
• Can it roll hot plate? Yes. It's designed for both cold and hot rolling.
• Can it roll cones? Yes. The rolls adjust and tilt for cone bending.
• What control system does it use? A Siemens CNC system with an independent mobile console.
• How much space does it need? Approx. 10,000 × 5,157 × 5,170 mm, plus room for feeding tables, supports and a heavy foundation.
• What should I send for a quotation? Plate material and yield strength, thickness and width, minimum rolling diameter, whether you need hot rolling or cone rolling, and your local voltage and frequency.
