EZHONG XW11G Pipeline Plate Rolling Machine Series – 12 m Pipe Forming for Oil and Gas Line Pipe

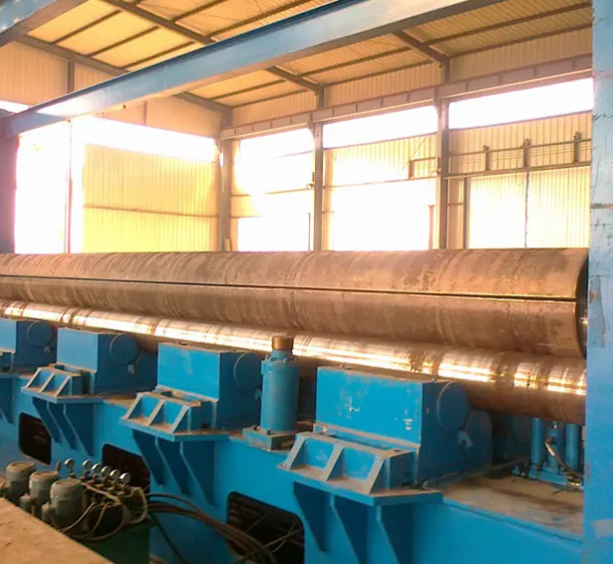

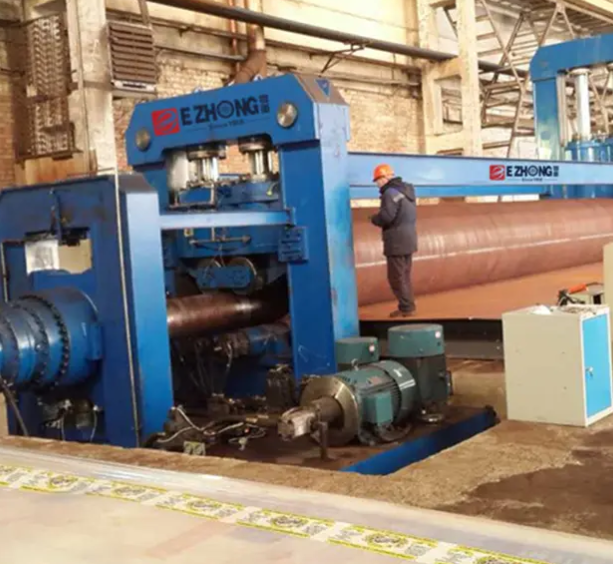

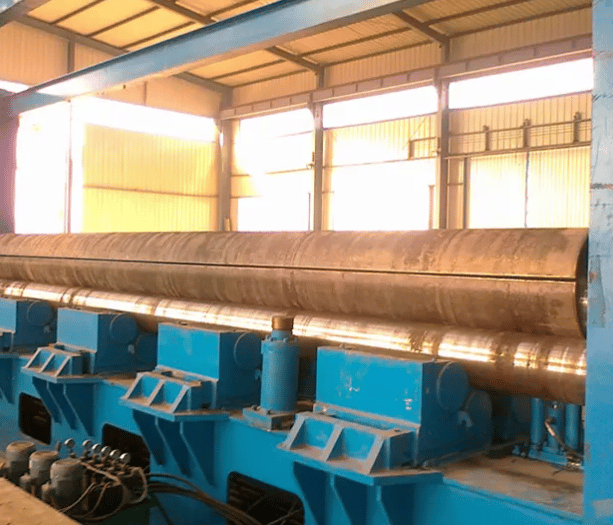

The EZHONG XW11G series is built for manufacturers of longitudinal welded steel pipe for oil and gas pipelines. The machines roll full 12,000 mm plates, from 16 to 40 mm thick, into small and large diameter thick-walled pipe in a single operation. An anti-deflection upper roll keeps long, thick plates straight even at small diameters, a feeding device stops the plate running off-line, and finished pipes are discharged automatically from inside the frame. With CNC control and one operator, it offers a simpler alternative to multi-step JCO forming and can sit at the heart of a complete welded pipe line.

Key Features

• Rolls plates up to 12,000 mm long into pipe in one operation
• Anti-deflection upper roll design removes roll deflection when rolling thick plate to small diameters
• Multiple sets of cylinders press on both ends of the upper roll. The piston rods are fixed and the cylinders move, lifting the upper roll seats. This makes better use of space, improves material utilisation and significantly reduces machine weight
• Feeding device prevents lateral misalignment of the plate

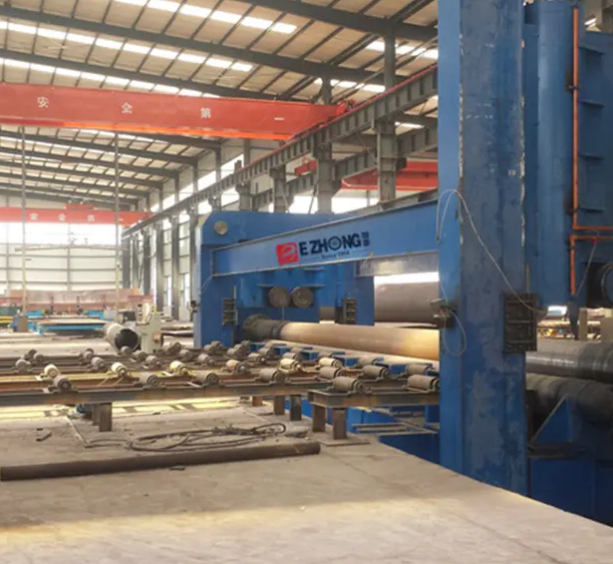

• Finished pipes are discharged from inside the frame, with no need to tip or reset the upper roll, improving safety
• Automatic hydraulic discharge suited to continuous line production
• CNC system for straightforward operation
• Single-operator use
• Solid, high-strength rolls with low deflection and long service life
• Forged high-carbon steel transmission gears
• Integral welded steel frame

Complete Pipe Line Option

• Can be combined with a seam pre-welding (tack welding) machine and edge preparation machine to form a complete longitudinal welded pipe production line
• EZHONG can provide technical support for the whole line

Available Models

• XW11G-16×12000: 16 mm × 12,000 mm, 90 kW
• XW11G-20×12000: 20 mm × 12,000 mm, 110 kW
• XW11G-30×12000: 30 mm × 12,000 mm, 150 kW
• XW11G-40×12000: 40 mm × 12,000 mm, 220 kW

Applications

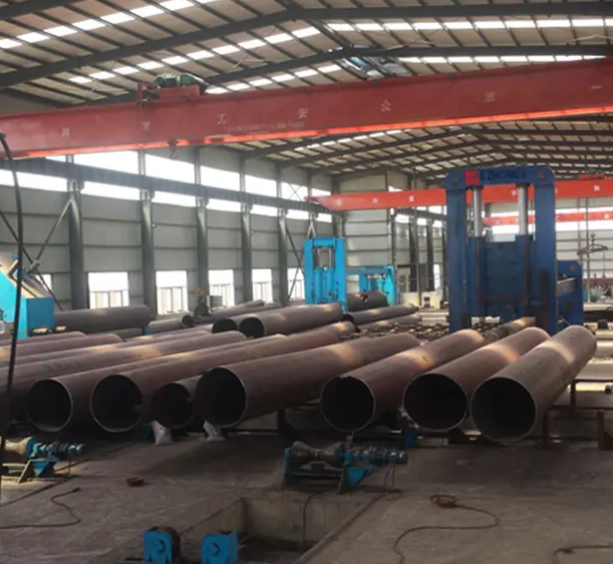

• Longitudinal welded line pipe for onshore and offshore oil and gas pipelines
• Water transmission pipe
• Structural and piling pipe

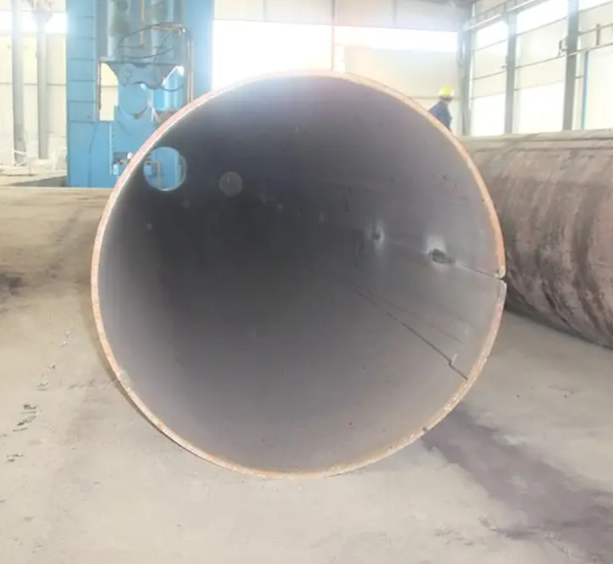

• Thick-walled, small-diameter pipe production

Related EZHONG Machines

• W11NC tank plate rolling machine series
• Ship plate bending machine series
• Wind tower plate rolling machine

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE and ISO 9001 (as stated by EZHONG)

Frequently Asked Questions

• Is this a field pipe bending machine? No. It forms flat plate into pipe in the factory, for producing longitudinal welded pipe. It is not used for bending pipe on a pipeline construction site.
• What pipe lengths can it produce? Up to 12,000 mm from a single plate.
• What plate thicknesses are available? Four models from 16 mm to 40 mm.
• How does it compare with JCO forming? It rolls the pipe in one operation with a single operator, rather than the multiple press steps used in JCO forming.
• Can it be part of a full pipe line? Yes. It can be combined with tack welding and edge preparation machines, and EZHONG can support the whole line.
• What should I send for a quotation? Plate grade and yield strength (e.g. API 5L grade), thickness, pipe length, outside diameter range, required output, and your local voltage and frequency.
