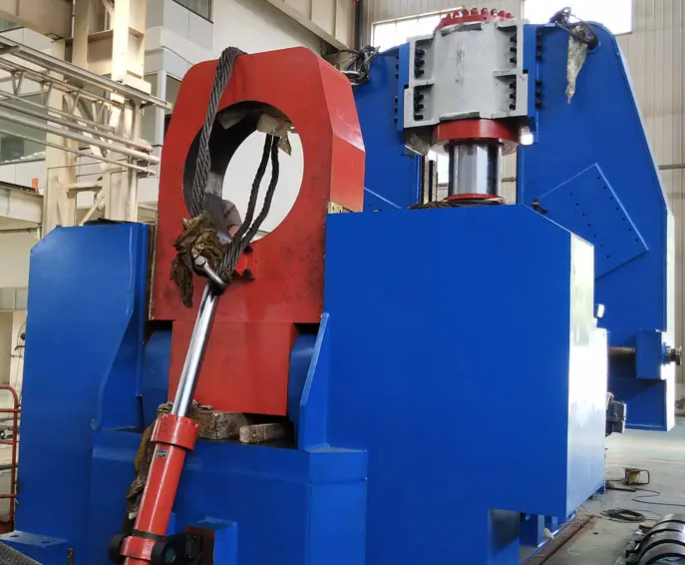

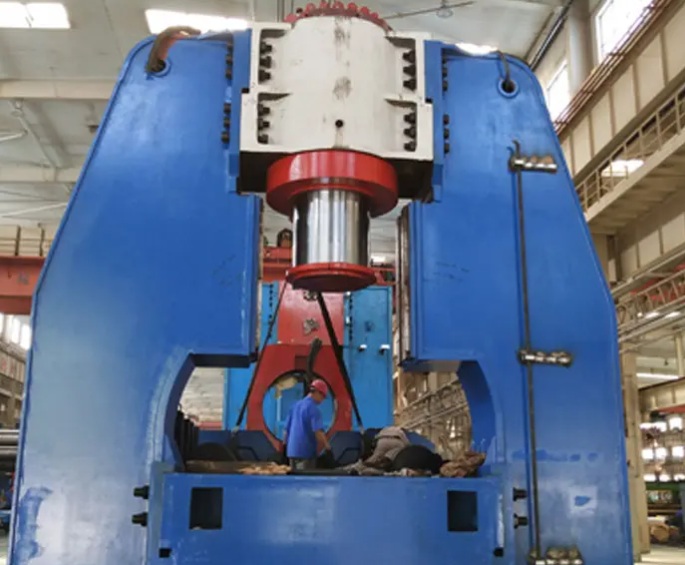

EZHONG XW11S-140x4500 CNC Three-Roll Plate Rolling Machine – Wide, Energy-Efficient Heavy Plate Rolling

The EZHONG XW11S-140x4500 is a CNC three-roll plate rolling machine built for wide, thick plate. It rolls steel up to 140 mm thick and 4,500 mm wide, and pre-bends plate ends up to 125 mm, completing end pre-bending and full shell rolling in a single feed without turning the plate. EZHONG's patented dual-drive system powers each lower roll separately, which cuts friction, noise and energy use while allowing a smaller main motor. With its in-house CNC system controlling roll position, levelling and cone tilt, it's well suited to wind tower, pressure vessel, shipbuilding and heavy structural fabrication.

What Makes This Machine Different

• Patented dual drive: Each lower roll has its own drive system, eliminating the sliding friction, vibration and wear caused by shared mechanical drives
• Rolling-mill bearings: Low-friction roller bearings on the work rolls further reduce energy use and noise
• Smaller main motor: Lower friction means less power is needed for the same bending capacity
• Integrated cylinder design: Patented cylinders sit within the bed for a compact, rigid frame and a smaller footprint
• Patented cone rolling device: Rolls cones with a smaller small-end diameter than conventional machines
• Simple foundation: An integral chassis keeps foundation work straightforward

Key Features

• Rolls plate up to 140 mm thick and 4,500 mm wide
• Pre-bends plate ends up to 125 mm thick in a single feed
• Horizontal downward adjustment design, with lower rolls moved by horizontal hydraulic cylinders
• CNC control of synchronised upper roll lifting, cone tilt, levelling and lower roll movement
• EZHONG's in-house CNC system with screen display, roll management, program control, process parameter storage, fault alarms and operator dialogue
• Three digital readouts show the position of each work roll
• Continuous bending that avoids kinks and peaked seams
• Forms O-shaped, U-shaped and multi-radius sections with high straightness
• Overload protection
• Hydraulic balance system and two-speed working system

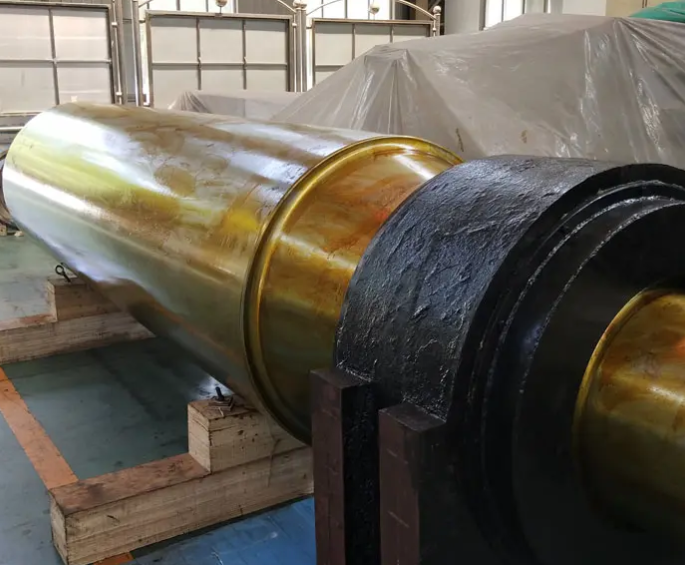

• Rolls forged from high-quality steel, heat treated and induction hardened
• Transmission gears in forged high-carbon steel
• Integral welded steel plate frame for rigidity and stability
• Built to EC safety standards with CE certification
• Single-operator use

Technical Specifications

• Model: XW11S-140x4500
• Type: CNC three-roll, horizontal downward adjustment, dual drive
• Maximum rolling width: 4,500 mm
• Maximum thickness without pre-bending: 140 mm
• Maximum thickness with pre-bending: 125 mm
• Working speed: 4 m/min
• Control: EZHONG in-house CNC system
• Rolls: Forged steel, heat treated and induction hardened
• Certification: CE

Applications

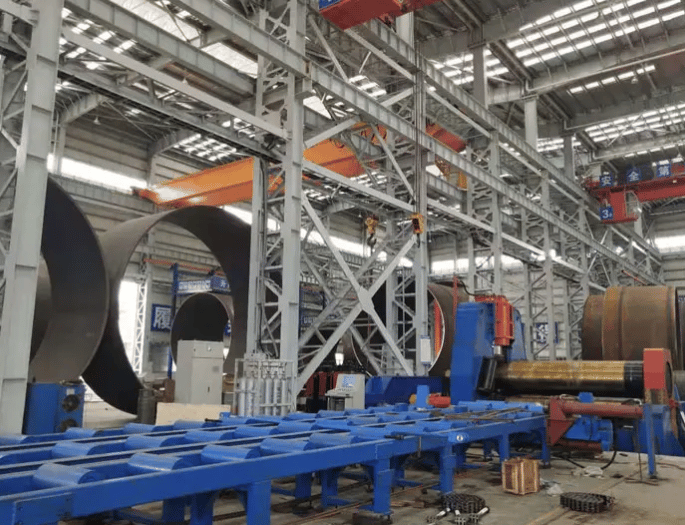

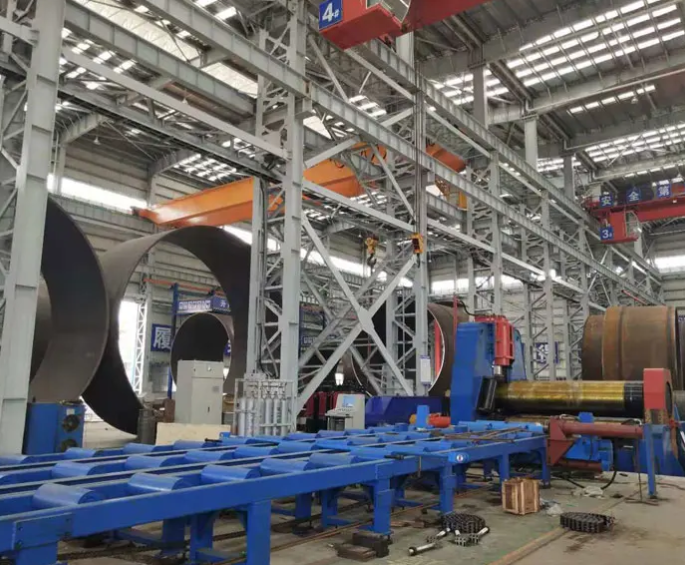

• Wind energy: Wide tower sections and cones
• Petroleum and chemical: Large tanks, pressure vessels and pipelines
• Boilers and utilities: Boiler shells and heavy pressure parts
• Shipbuilding: Wide hull sections and structural plates
• Metal structures and machinery: Heavy cylindrical shells, frames and curved sections

Related EZHONG Machines

• XW11S-120x3200 variable geometry plate rolling machine
• XW11S-270x3500 heavy plate rolling machine
• 260x4200mm CNC three-roll plate rolling machine

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE

Frequently Asked Questions

• What is the maximum plate size? 140 mm thick and 4,500 mm wide, or 125 mm when pre-bending.
• Why is it more energy efficient? Each lower roll has its own drive and the rolls run on low-friction bearings, so less power is lost to friction and a smaller main motor can be used.
• Can it roll cones? Yes. EZHONG's patented cone rolling device allows cones with a small end diameter.
• What shapes can it form? Cylinders (O-shapes), U-shapes, multi-radius sections and cones.
• What does the CNC system control? Upper roll lifting and levelling, cone tilt and lower roll movement, with program storage and fault alarms.
• Does it need a complex foundation? No. The integral chassis keeps the foundation simple.
• What should I send for a quotation? Plate material and yield strength, thickness and width, minimum rolling diameter, cone requirements, and your local voltage and frequency.
