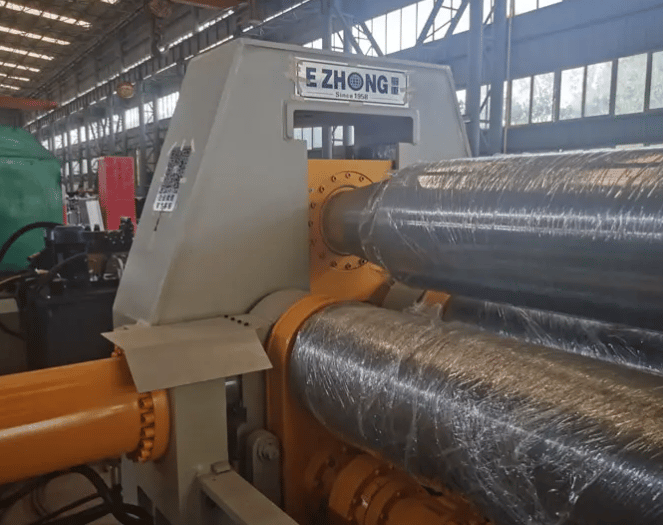

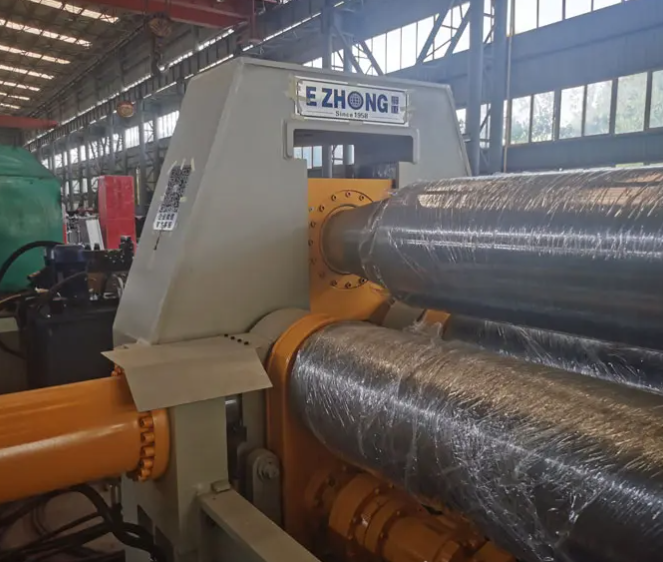

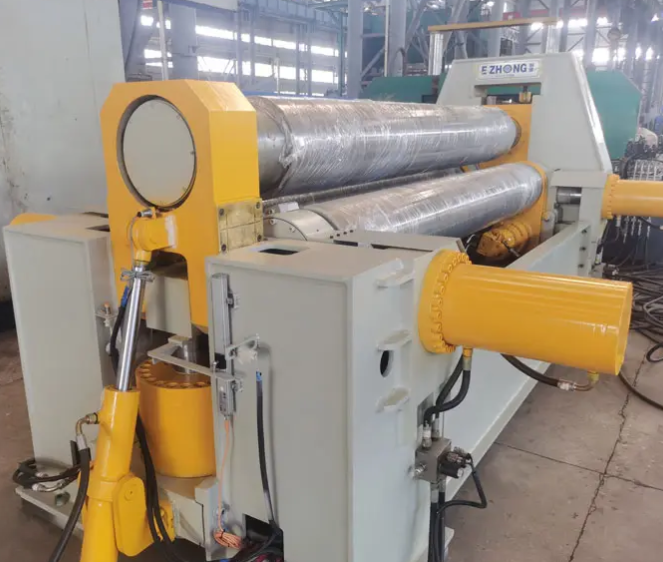

EZHONG XW11S-20x2500 Three-Roll Plate Rolling Machine – Compact Hydraulic Plate Roller for Medium Plate

The EZHONG XW11S-20x2500 is a compact hydraulic three-roll plate rolling machine for fabricators working with medium-thickness plate. It rolls steel up to 20 mm thick and 2,500 mm wide into cylinders, cones and curved sections, and can pre-bend plate ends up to 10 mm so shells come out round without flat edges. Numerical control with high-precision displacement sensors, an LED position display and single-operator controls make it straightforward to run, while a quick roll change design keeps maintenance downtime short. It's a practical, CE-certified choice for tank, pipe, ductwork and general steel fabrication shops.

How It Works

• The plate passes between one upper roll and two lower rolls
• The hydraulic upper roll presses down on the plate while the driven lower rolls feed it through
• Repeated passes bend the plate progressively until it forms the required cylinder, cone or arc
• A row of fixed support idlers under the lower rolls shortens their span, reducing deflection and improving the accuracy of the rolled part

Key Features

• Rolls plate up to 20 mm thick and 2,500 mm wide
• Pre-bends plate ends up to 10 mm thick in a single feed, with no need to turn the plate
• Variable centre distance with electro-hydraulic control

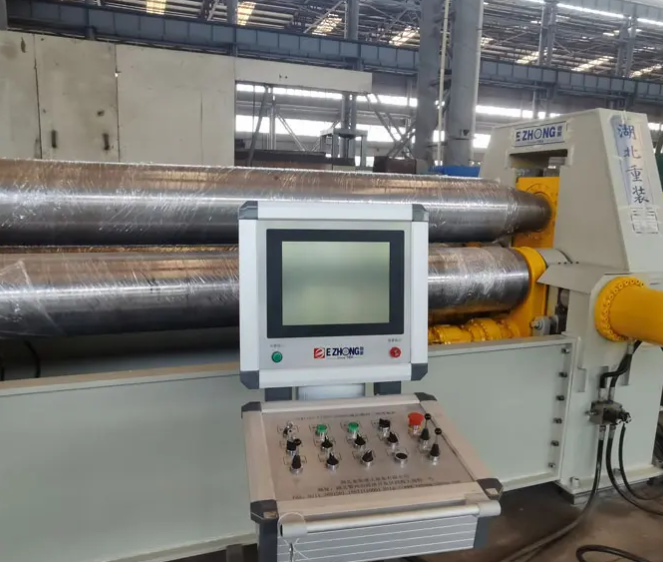

• Numerical control with high-precision displacement sensors monitoring upper roll position in real time
• LED display shows upper roll working position at a glance
• Quick roll change: the upper roll slides out axially after removing the connecting bolts
• Support idlers under the lower rolls for better rolling accuracy
• Two-speed working system for fast positioning and controlled bending

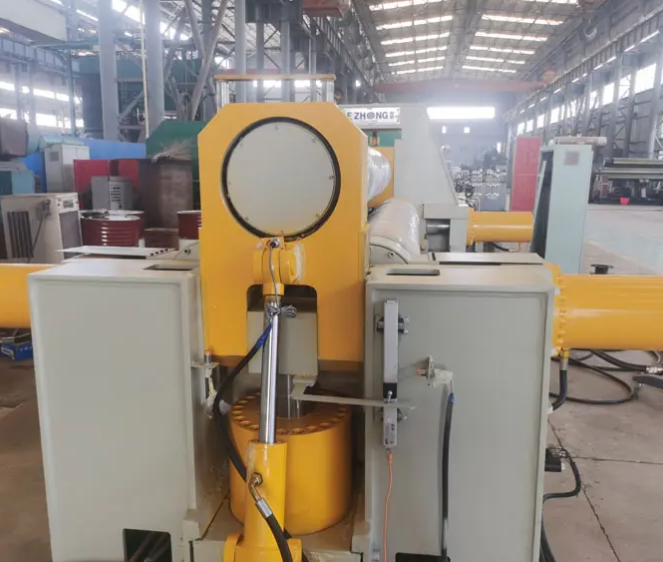

• Hydraulic balance system for easy removal of rolled cylinders
• Rolls forged from high-quality steel, heat treated and induction hardened
• Transmission gears in forged high-carbon steel for strength and wear resistance
• Integral welded steel plate frame for rigidity and stability
• Single-operator use
• Built to EC safety standards with CE certification

Technical Specifications

• Model: XW11S-20x2500
• Type: Hydraulic three-roll plate rolling machine
• Maximum rolling width: 2,500 mm
• Maximum thickness without pre-bending: 20 mm
• Maximum thickness with pre-bending: 10 mm
• Material yield strength: Up to 250 MPa
• Working speed: 1.5 – 5 m/min (two-speed)
• Control: Numerical control with displacement sensors and LED display
• Rolls: Forged steel, heat treated and induction hardened
• Machine dimensions: Approx. 5,550 × 2,250 × 1,860 mm
• Certification: CE

Applications

• Storage tanks and small pressure vessels
• Pipes, ducts and chimney sections
• Boiler and heat exchanger shells
• Silos, hoppers and cones
• Structural steel and machinery housings
• General fabrication and job shop work

Related EZHONG Machines

• XW11S-270x3500 heavy plate rolling machine
• 260x4200mm CNC three-roll plate rolling machine
• 20x2000mm four-roll plate bending machine

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE

Frequently Asked Questions

• What is the maximum plate size? 20 mm thick and 2,500 mm wide, based on material with a yield strength up to 250 MPa.
• Can it pre-bend plate ends? Yes, up to 10 mm thick, in a single feed without turning the plate.
• How is accuracy maintained? High-precision sensors track the upper roll position in real time, and support idlers under the lower rolls reduce deflection.
• How long does a roll change take? The upper roll is pinned to the main cylinder and slides out axially once the connecting bolts are removed, making roll changes quick.
• Can it roll cones? Yes. It can form cylinders, cones or partial arcs.
• How much space does it need? Approx. 5,550 × 2,250 × 1,860 mm, making it suitable for most fabrication workshops.
• What should I send for a quotation? Plate material and yield strength, thickness and width, minimum rolling diameter, whether you need cone rolling, and your local voltage and frequency.
