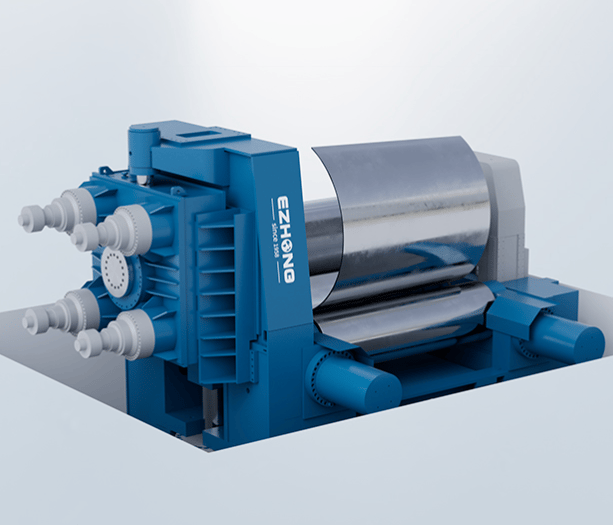

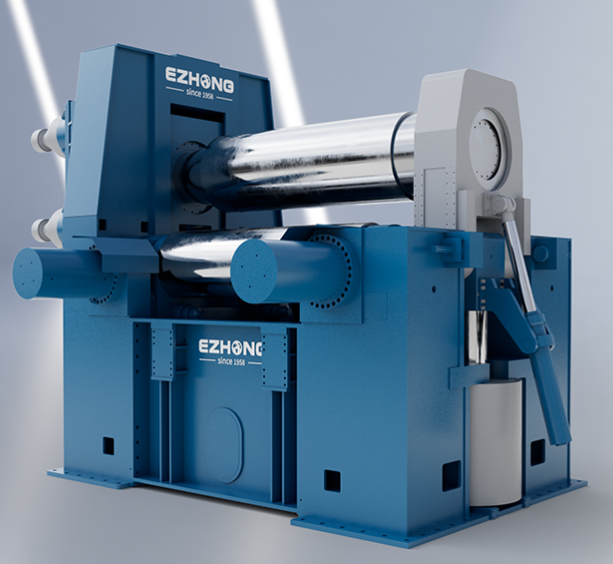

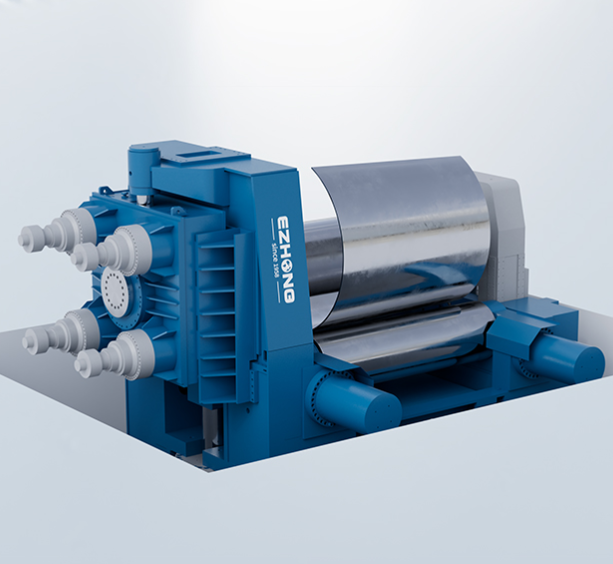

EZHONG XW11S Series Three-Roll Plate Rolling Machines – From Workshop Plate to 270 mm Heavy Plate

The EZHONG XW11S series is a range of hydraulic three-roll plate rolling machines covering almost every plate rolling job, from 20 mm workshop plate up to 270 mm heavy plate, in widths from 2,500 to 4,500 mm. Every model pre-bends and rolls, with NC or CNC control options, and can be customised for the job. The range serves shipbuilding, wind power, oil and gas, and pressure vessel manufacturers, and EZHONG supplies it with global after-sales and technical support.

Models in the Range

• XW11S-20x2500: 2,500 mm width, 20 mm without pre-bending, 10 mm with pre-bending, 1.5–5 m/min
• XW11S-80x3200: 3,200 mm width, 80 mm without pre-bending, 70 mm with pre-bending, 3.6 m/min
• XW11S-120x3200: 3,200 mm width, 120 mm without pre-bending, 100 mm with pre-bending, 3.6 m/min
• XW11S-150x3200: 3,200 mm width, 150 mm without pre-bending, 135 mm with pre-bending, 3.5 m/min
• XW11S-160x3500: 3,500 mm width, 160 mm without pre-bending, 140 mm with pre-bending, 4 m/min
• XW11S-140x4500: 4,500 mm width, 140 mm without pre-bending, 125 mm with pre-bending, 4 m/min
• XW11S-270x3500: 3,500 mm width, 270 mm without pre-bending, 240 mm with pre-bending, 3.25 m/min

Which Model Fits?

• General fabrication and job shops: XW11S-20x2500, a compact NC machine for light and medium plate
• Medium-heavy fabrication, tanks and vessels: XW11S-80x3200 or XW11S-120x3200
• Wind towers and heavy vessels: XW11S-150x3200, XW11S-160x3500 or XW11S-140x4500 (the widest in the range)
• Extra-heavy pressure vessels and forgings: XW11S-270x3500, the heaviest in the series

Key Features Across the Range

• Hydraulic drive for heavy-duty plate bending
• Pre-bending and rolling on every model
• Flexible roll adjustment for a wide range of thicknesses and widths
• NC or CNC control, depending on model and specification
• Heavy steel construction for long-term reliability
• Custom builds available for specific projects

Applications

• Shipbuilding: Curved hull plates
• Wind power: Tower sections and supports
• Pressure vessels: Cylindrical and conical shells
• Oil and gas: Pipe sections and storage tank shells
• Aerospace: Lightweight, high-strength materials

Reference Projects

• EZW11SY-200/4500 heavy plate rolling machine supplied to Lamprell for wind towers
• Heavy plate rolling machines supplied to Zhanghua Machinery (Suzhou) Heavy Equipment for non-standard pressure vessels
• EZW11S-270/3500 heavy plate rolling machine in pressure vessel production

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: Quality management and occupational health and safety management system certification (per EZHONG)
• Lead time: Depends on specification and order size

Frequently Asked Questions

• What size range does the XW11S series cover? From 20 mm × 2,500 mm up to 270 mm × 3,500 mm, with widths up to 4,500 mm.
• Can EZHONG customise an XW11S machine? Yes. Machines can be built to suit specific project requirements.
• Is CNC available? NC and CNC control options are offered across the range.
• What is the lead time? It depends on customisation and order size, so EZHONG quotes it per order.
• Is after-sales support available? Yes. EZHONG provides global technical support and maintenance services.
• What should I send for a quotation? Plate material and yield strength, maximum thickness and width, minimum rolling diameter, whether you need cone rolling or CNC, and your local voltage and frequency.
