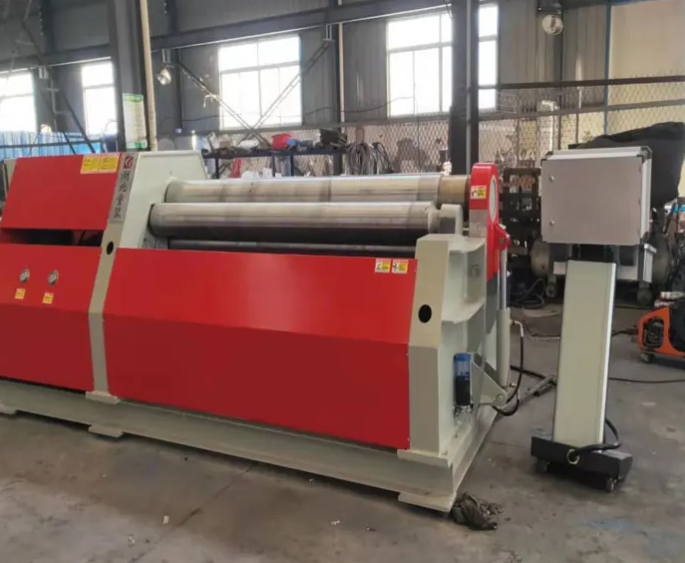

EZHONG XW12X-20x2000 Compact Four-Roll Plate Rolling Machine – PLC Control with Branded Hydraulics and Electrics

The EZHONG XW12X-20x2000 is a compact hydraulic four-roll plate rolling machine for fabrication shops working with plate up to 20 mm thick and 2,000 mm wide. It pre-bends both plate ends up to 16 mm and rolls the full shell in a single feed, without turning the plate. PLC control with high-precision sensors levels the rolls automatically and holds ±0.2 mm synchronisation, while Yuken hydraulic valves and Schneider electrical components give dependable, low-maintenance operation. With a footprint of around 6 × 2 m, it fits comfortably into most workshops.

Key Features

• Rolls plate up to 20 mm thick and 2,000 mm wide
• Pre-bends plate ends up to 16 mm thick in a single feed
• Four-roll design: plate clamped between top and bottom rolls, so it can't slip
• Driven upper roll powered by a hydraulic motor and planetary reducer, with forward and reverse travel
• Instant brakes on each motor stop the rolls precisely, keeping straight edges to a minimum
• Hydraulic cylinders move the bottom and side rolls fast when unloaded and slowly under load, saving energy
• Bottom and side rolls can tilt at one end for cone rolling
• Spherical roller bearings on every roll for heavy-duty durability

Control and Accuracy

• PLC control of bottom and side roll positions, with automatic levelling
• ±0.2 mm synchronisation accuracy
• High-precision displacement sensors monitor the position of every roll

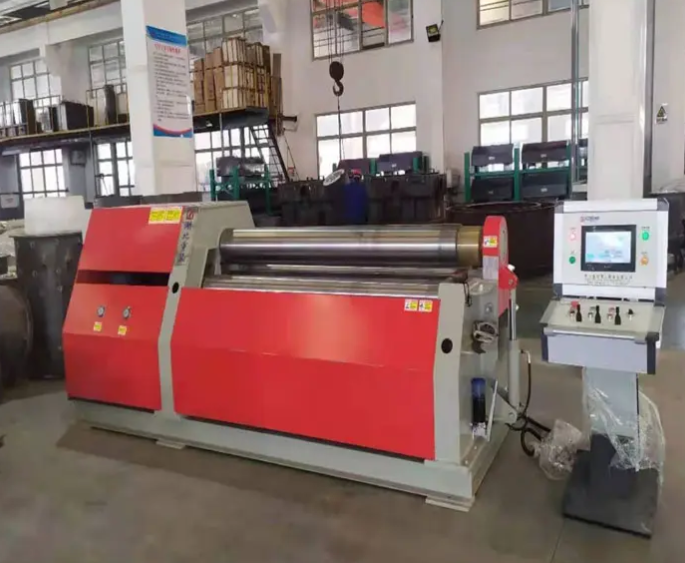

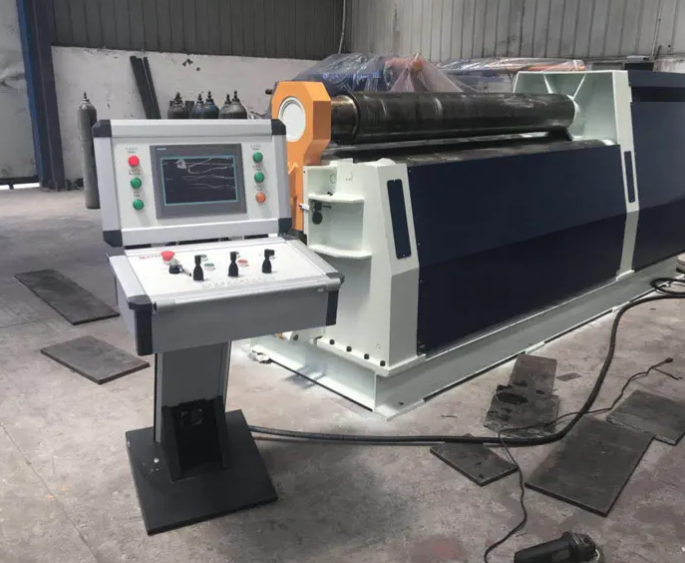

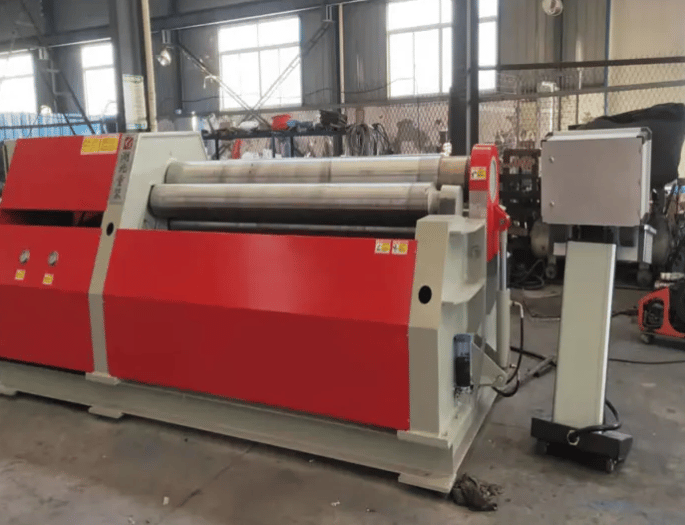

• Mobile operating console with touch screen showing all four roll positions
• PLC functions include parameter setting, program control, power-off memory, file storage, fault self-diagnosis and operating error detection
• Manual, debugging and programmed operating modes

Hydraulics and Electrics

• Main hydraulic valve groups from Yuken
• Cast valve block with large flow channels for low resistance, low pressure loss and low heat
• Suction and return oil filters keep the system clean, with an air filter on the tank
• Dual safety protection devices
• Centralised lubrication
• Main electrical components from Schneider

Build and Safety

• Integral base for high rigidity and easy lifting and installation
• Welded frame and base, annealed to relieve internal stress and improve accuracy
• Modular construction for easier maintenance

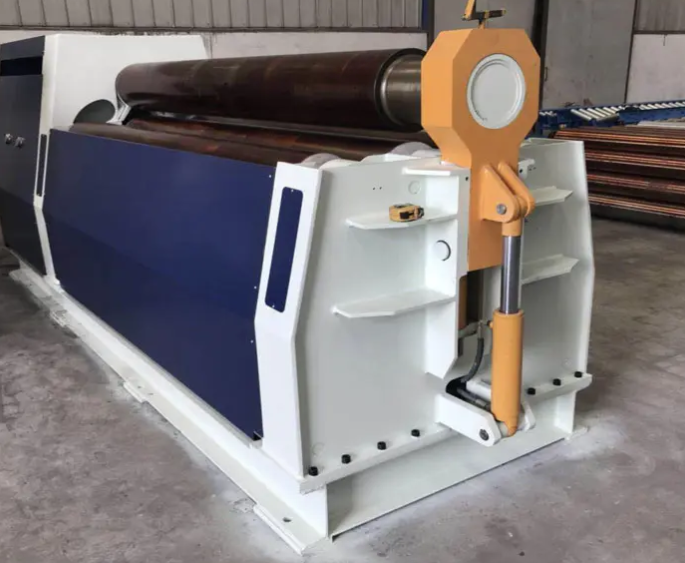

• Hydraulic tipping frame for easy removal of rolled cylinders, with a safety interlock on reset
• Upper roll balance device keeps the roll steady while the cylinder is removed

Technical Specifications

• Model: XW12X-20x2000
• Type: Hydraulic four-roll plate rolling machine
• Maximum rolling width: 2,000 mm
• Maximum thickness without pre-bending: 20 mm
• Maximum thickness with pre-bending: 16 mm
• Working speed: 1.5 – 6 m/min
• Synchronisation accuracy: ±0.2 mm
• Control: PLC with touch screen and mobile console
• Hydraulics: Yuken valve groups
• Electrics: Schneider
• Machine dimensions: Approx. 6,000 × 2,000 × 1,850 mm

Applications

• Small and medium tanks and pressure vessels
• Boiler shells and heat exchangers
• Ductwork, hoppers and cones
• Stainless steel food and process equipment
• Metal structures and machinery parts
• General fabrication and job shop work
