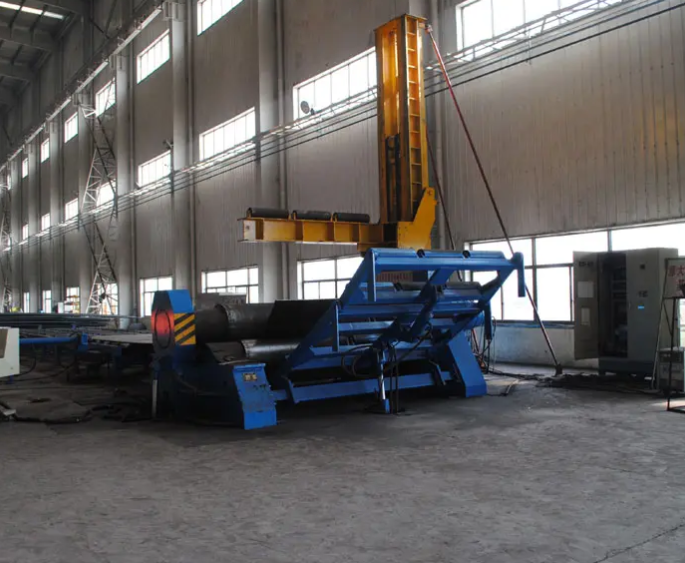

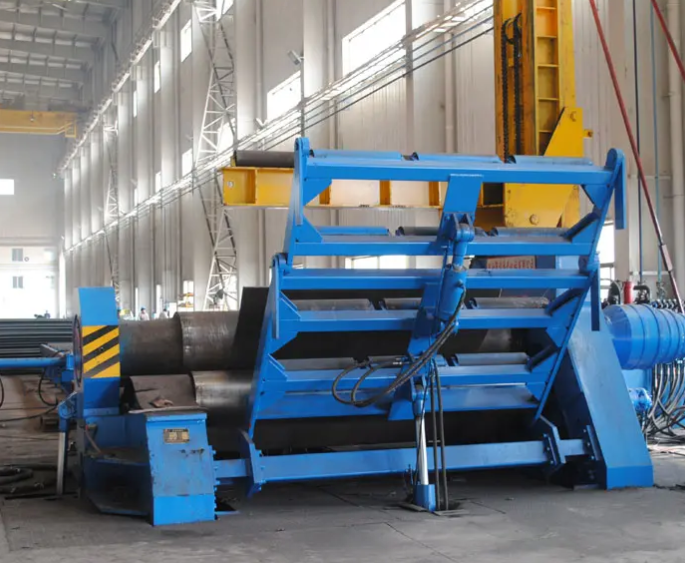

EZHONG XW12X-60x4200 Wide Four-Roll Plate Rolling Machine – 4.2 m Rolling Width for Large Shells

The EZHONG XW12X-60x4200 is a hydraulic four-roll plate rolling machine built for wide plate. With a 4,200 mm rolling width, it forms taller shell sections from a single plate, so large tanks, vessels and ducts need fewer circumferential welds. It rolls steel up to 60 mm thick and pre-bends ends up to 50 mm, with the plate clamped between the centre rolls throughout the cycle so it stays square and never slips. A 100 kW drive, variable speed from 1.5 to 6 m/min and NC or CNC control make it a productive single-operator machine for steel, stainless steel and aluminium.

Why Rolling Width Matters

• Each shell course can be up to 4.2 m tall, compared with around 2.5–3 m on many standard machines
• Fewer courses means fewer circumferential welds, saving welding time, consumables and inspection

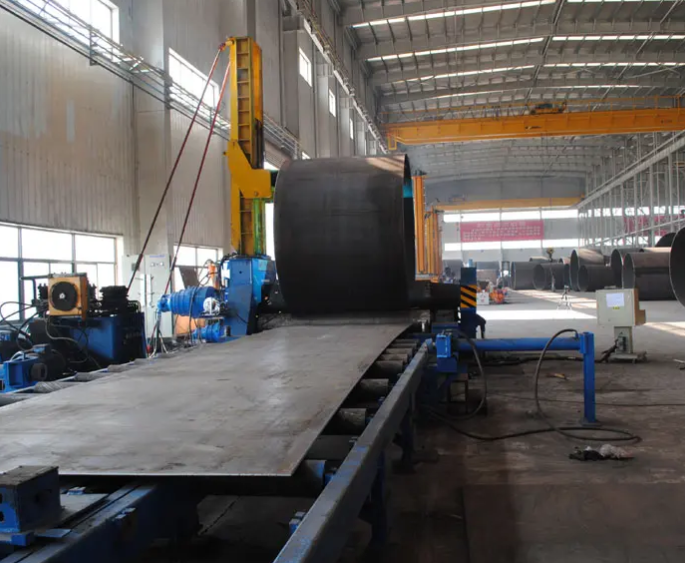

• Wide plates can be rolled in one pass instead of being split and joined

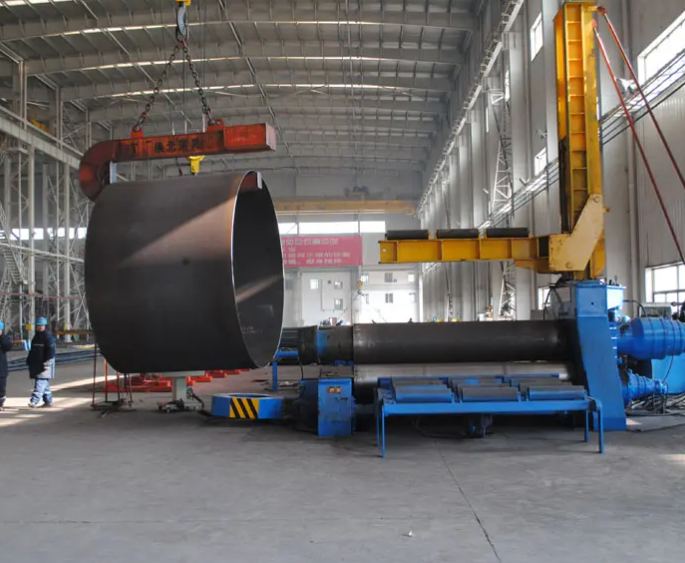

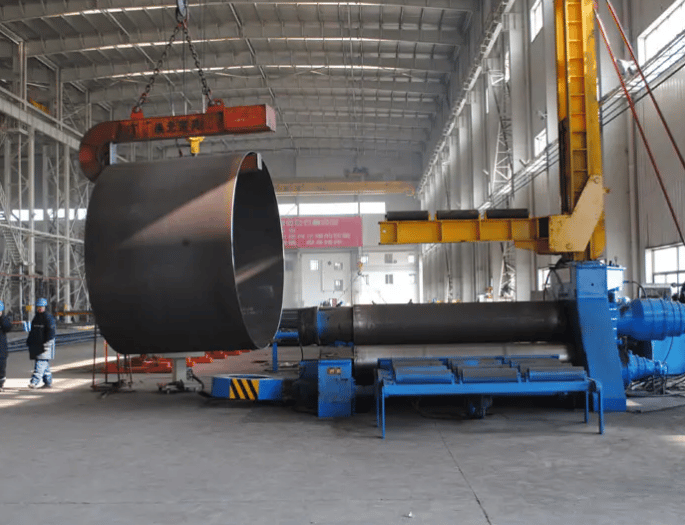

• Especially valuable for storage tanks, silos, large vessels and big-diameter ducting

Key Features

• 4,200 mm rolling width for wide plate
• Rolls plate up to 60 mm thick and pre-bends up to 50 mm
• Four-roll design: plate clamped between top and bottom rolls, both ends pre-bent without turning
• Short flat ends, with a clamping length of around 1.5 times plate thickness
• Suitable for carbon steel, stainless steel and aluminium
• Rolls full cylinders or sections with different radii
• Pinch rolls and side rolls driven by hydraulic pistons
• 100 kW drive with variable speed from 1.5 to 6 m/min
• Two-speed working system
• NC or CNC control, suited to single-operator and automated work
• Cone rolling device
• Three digital readouts show each work roll position
• Hydraulic drop-end for easy cylinder removal
• Hydraulic balance system and overload protection
• Independent mobile operating console
• Welded steel frame with full stress relief
• Forged steel rolls, heat treated and induction hardened
• Branded electrical and hydraulic components
• Built to EC safety standards with CE certification

Technical Specifications

• Model: XW12X-60x4200
• Type: Hydraulic four-roll plate rolling machine
• Maximum rolling width: 4,200 mm
• Maximum thickness without pre-bending: 60 mm
• Maximum thickness with pre-bending: 50 mm
• Working speed: 1.5 – 6 m/min
• Motor power: 100 kW
• Materials: Carbon steel, stainless steel, aluminium
• Control: NC or CNC
• Rolls: Forged steel, heat treated and induction hardened
• Certification: CE

Applications

• Large storage tanks for oil, chemicals and water
• Pressure vessels and process columns
• Silos and bulk storage
• Boiler shells
• Large-diameter ducting and chimney sections
• Shipbuilding and heavy steel structures

Which EZHONG Four-Roll Machine Fits?

• XW12X-60x4200 (this machine): Widest plate, up to 60 mm, for large tanks and vessels
• XW12Z-80x3000: Thicker plate up to 80 mm, 3 m wide, for medium-heavy general fabrication
• W12-120x4000: Heavy plate up to 120 mm with Siemens CNC and hot rolling

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE

Frequently Asked Questions

• What is the maximum plate size? 4,200 mm wide and 60 mm thick, or 50 mm when pre-bending.
• Why choose a 4.2 m wide machine? Wider plates mean taller shell courses and fewer welds on large tanks and vessels.
• Can it roll stainless steel and aluminium? Yes, as well as carbon steel.
• Do I need to turn the plate to pre-bend both ends? No. The four-roll design pre-bends both ends in a single feed.
• Can it roll cones? Yes. A cone rolling device is included.
• How much power does it need? The main drive is 100 kW.
• What should I send for a quotation? Plate material and yield strength, thickness and width, minimum rolling diameter, whether you need cone rolling or CNC, and your local voltage and frequency.
