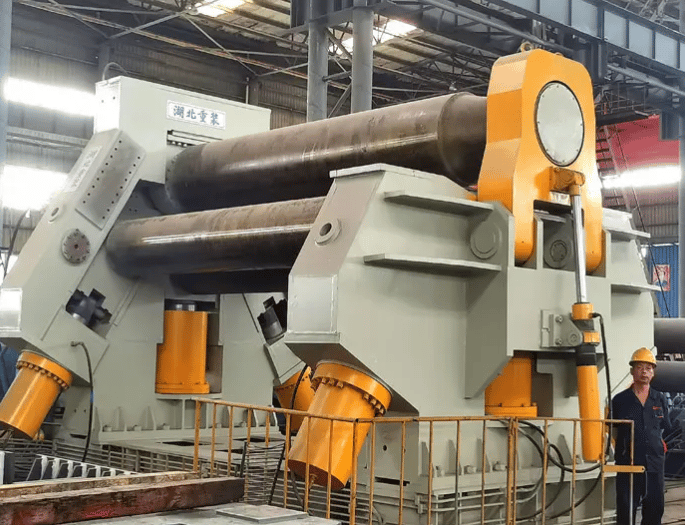

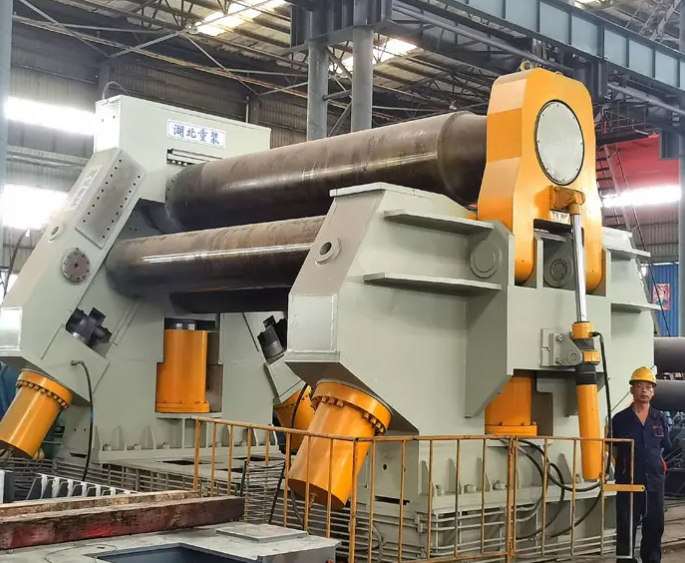

EZHONG XW12Z-80x3000 Four-Roll Plate Rolling Machine – Easy, Accurate Rolling for Steel, Stainless and Aluminium

The EZHONG XW12Z-80x3000 is a hydraulic four-roll plate rolling machine for medium-thickness plate, rolling up to 80 mm thick and 3,000 mm wide, and pre-bending plate ends up to 70 mm. The plate is clamped between the two centre rolls throughout the cycle, so it stays square and can't slip, while the side rolls pre-bend both ends and form the shell in one direction without turning the plate. With a 100 kW drive, speeds from 1.5 to 6 m/min and NC or CNC control options, it's a straightforward, single-operator machine for steel, stainless steel and aluminium work.

Why a Four-Roll Machine Is Easier to Use

• The plate is fed once and clamped between the top and bottom rolls
• Both ends are pre-bent by the side rolls without removing or turning the plate
• Constant clamping keeps the plate square and prevents slipping
• The clamping length is around 1.5 times the plate thickness, keeping flat ends short
• Fixed plate position makes the machine ideal for NC and CNC control
• Less operator skill needed than a comparable three-roll machine

Key Features

• Rolls plate up to 80 mm thick and 3,000 mm wide
• Pre-bends plate ends up to 70 mm thick
• Suitable for carbon steel, stainless steel and aluminium plate
• Rolls full cylinders or sections with different radii
• Pinch rolls and side rolls driven by hydraulic pistons
• Variable working speed from 1.5 to 6 m/min, with a two-speed working system
• 100 kW main drive
• NC control as standard, with an advanced programmable CNC system available
• Cone rolling device
• Three digital readouts show the position of each work roll

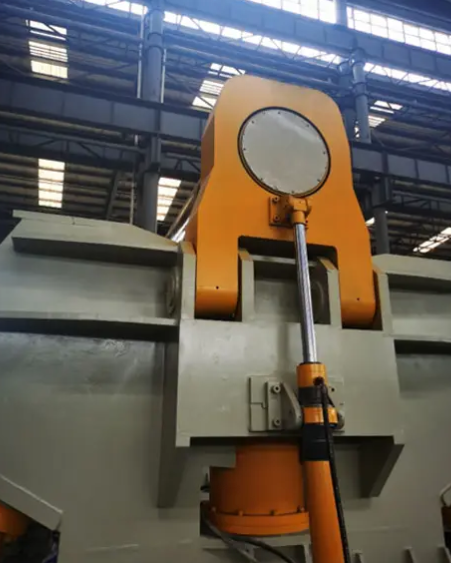

• Hydraulic drop-end for easy unloading of finished cylinders
• Hydraulic balance system and overload protection
• Independent mobile operating console
• Welded steel frame with full stress relief
• Rolls forged from high-quality steel, heat treated and induction hardened

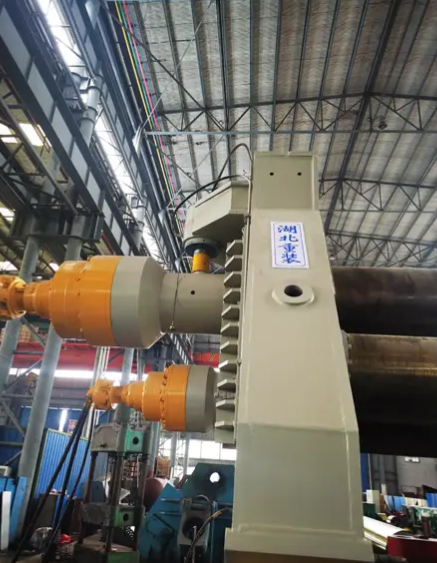

• Transmission gears in forged high-carbon steel
• European-style design with European-quality rolls, materials and bearings (as stated by EZHONG)
• Branded electrical and hydraulic components
• Built to EC safety standards with CE certification

Technical Specifications

• Model: XW12Z-80x3000
• Type: Hydraulic four-roll plate rolling machine
• Maximum rolling width: 3,000 mm
• Maximum thickness without pre-bending: 80 mm
• Maximum thickness with pre-bending: 70 mm
• Working speed: 1.5 – 6 m/min
• Motor power: 100 kW
• Materials: Carbon steel, stainless steel, aluminium
• Control: NC, with CNC option
• Rolls: Forged steel, heat treated and induction hardened
• Certification: CE

How a Rolling Cycle Works

• Set up: The bottom roll and side rolls are positioned for the plate thickness
• Feed and clamp: The plate is fed in level and clamped between the top and bottom rolls
• Pre-bend first end: The rear side roll rises to bend the leading edge
• Pre-bend second end: The plate runs through and the front side roll bends the trailing edge
• Roll: The side rolls are set to the required radius and the plate is rolled into a shell
• Unload: The drop-end opens and the finished cylinder is removed

Applications

• Petroleum and chemical tanks and pressure vessels
• Boiler shells and heat exchangers
• Shipbuilding and marine components
• Stainless steel food, pharmaceutical and process vessels
• Aluminium tanks and structures
• Metal structures and machinery manufacturing

Related EZHONG Machines

• W12-120x4000 CNC four-roll plate rolling machine
• XW11S-120x3200 variable geometry three-roll plate rolling machine
• XW11S-20x2500 three-roll plate rolling machine

Commercial Details

• Brand: EZHONG
• Manufacturer: Hubei Heavy Industry Equipment Co., Ltd
• Place of origin: Ezhou, Hubei, China
• Certification: CE

Frequently Asked Questions

• What is the maximum plate size? 80 mm thick and 3,000 mm wide, or 70 mm when pre-bending.
• Can it roll stainless steel and aluminium? Yes. It's suited to medium carbon steel, stainless steel and aluminium plate.
• Why choose four rolls instead of three? The plate is clamped throughout, so both ends can be pre-bent without turning it, flat ends are shorter and the machine is easier to run and automate.
• Can it roll cones? Yes. A cone rolling device is included.
• Does it come with CNC? NC control is standard, and a more advanced programmable CNC system is available.
• How much power does it need? The main motor is 100 kW.
• What should I send for a quotation? Plate material and yield strength, thickness and width, minimum rolling diameter, whether you need cone rolling or CNC, and your local voltage and frequency.
